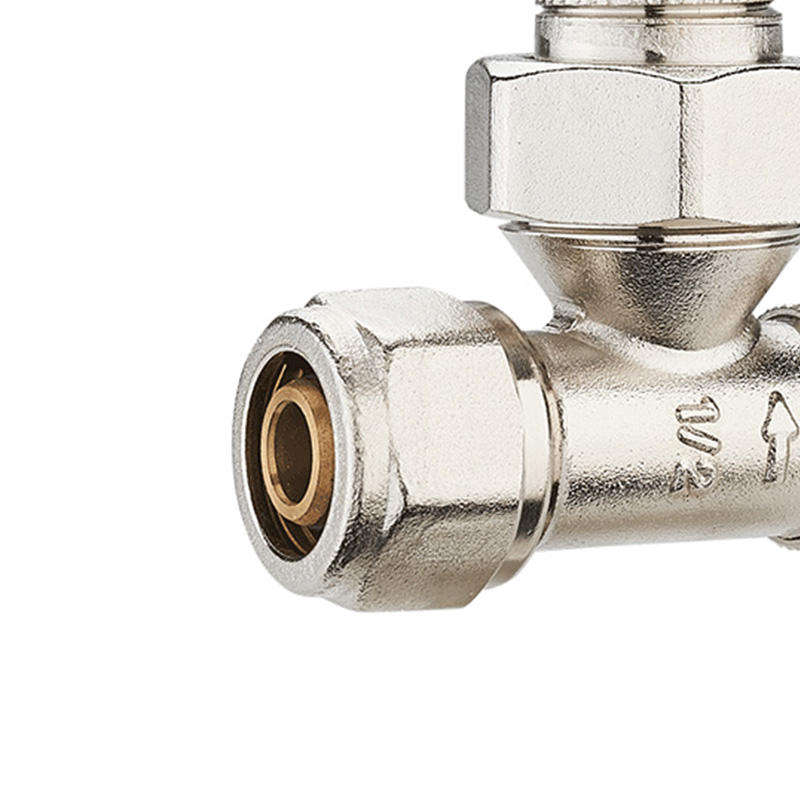

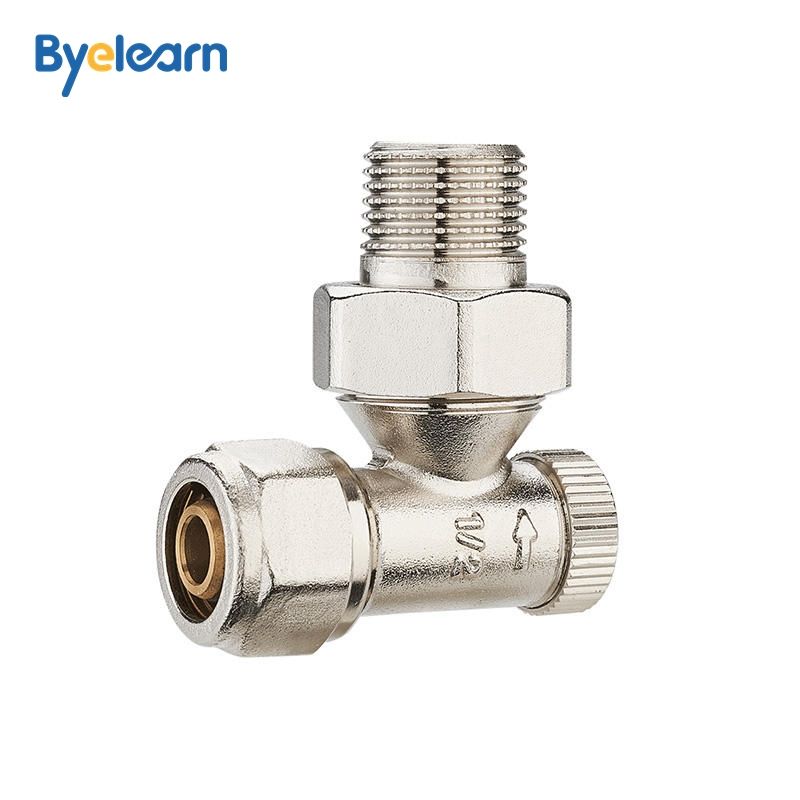

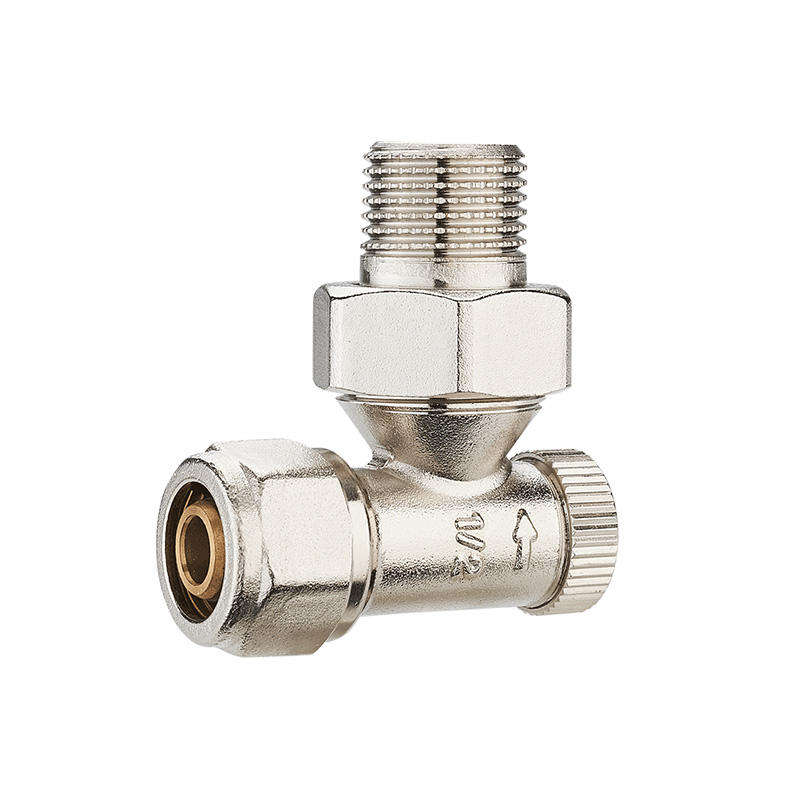

| Name: | Lockshield Valve |
| Model Number: | L3006TA205NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve:ac | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Enhanced seal structure
Primary seal with graphite reinforced PTFE + 316L stainless steel spring compensation system
Secondary seal with O-ring Viton (temperature resistance -30℃~150℃)
Passed EN12266-1 Class A leakage test (bubble seal)
4. Optimization of fluid performance
Built-in double Venturi stabilized flow channel, turbulence suppression efficiency up to 65%
Kv value of 0.52 (DN15)/0.87 ( Kv value 0.52 (DN20) / 0.87 (DN20), 22% higher than conventional models
Differential pressure operating range extended to 0.05-5 bar
