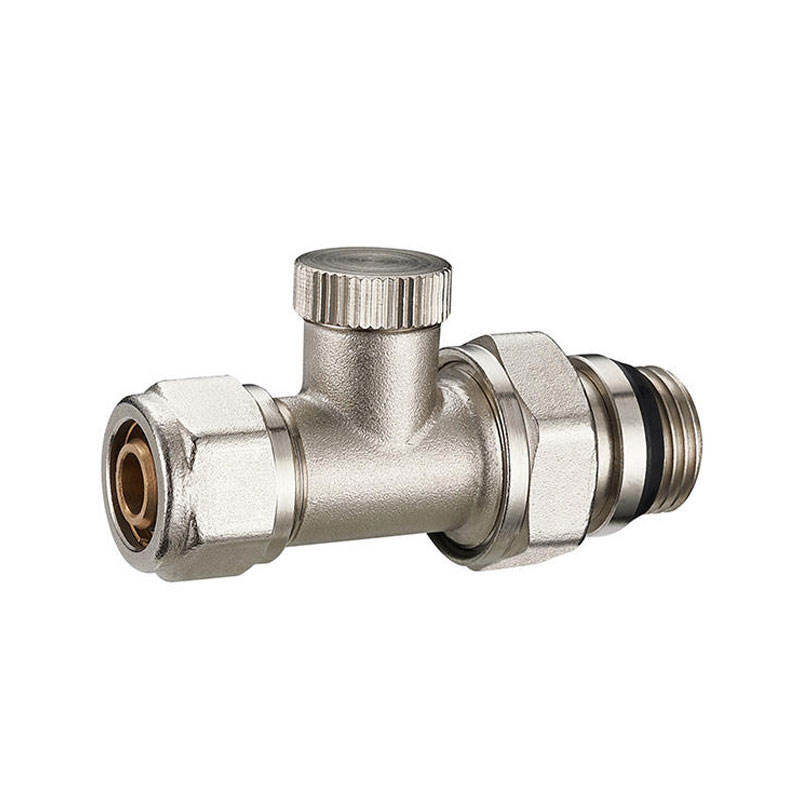

| Name: | Lockshield Valve |
| Model Number: | L3005TA203NZZ |
| Warranty: | 1 year |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Precision flow adjustment
Adopting high-precision regulating spool, can be fine-tuned by 1/4 turn with special regulating key
Stem scale shows the opening degree, realizing precise control of flow rate (regulating accuracy ±5%)
Effectively solve the problem of radiator not warming up at the end of the system
Specialized sealing design
The main body is made of DZR dezincification-resistant brass (CW602N material)
Dual sealing structure: PTFE seat + EPDM O-ring
Pressure-resistant grade PN16, maximum working temperature 130℃.
