| Name: | Lockshield Valve |
| Model Number: | L3006TE002WZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Product Overview

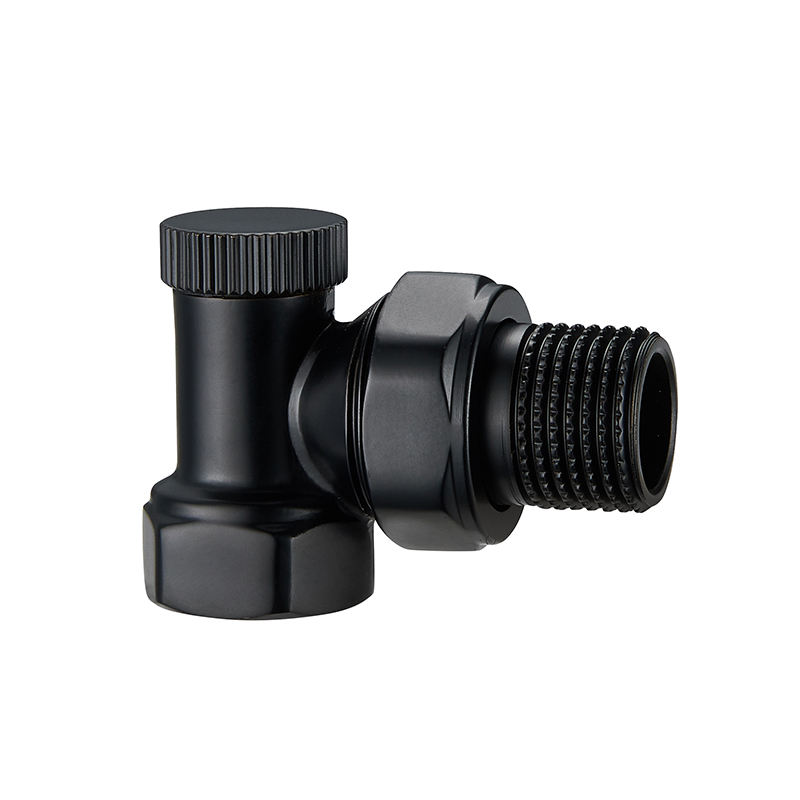

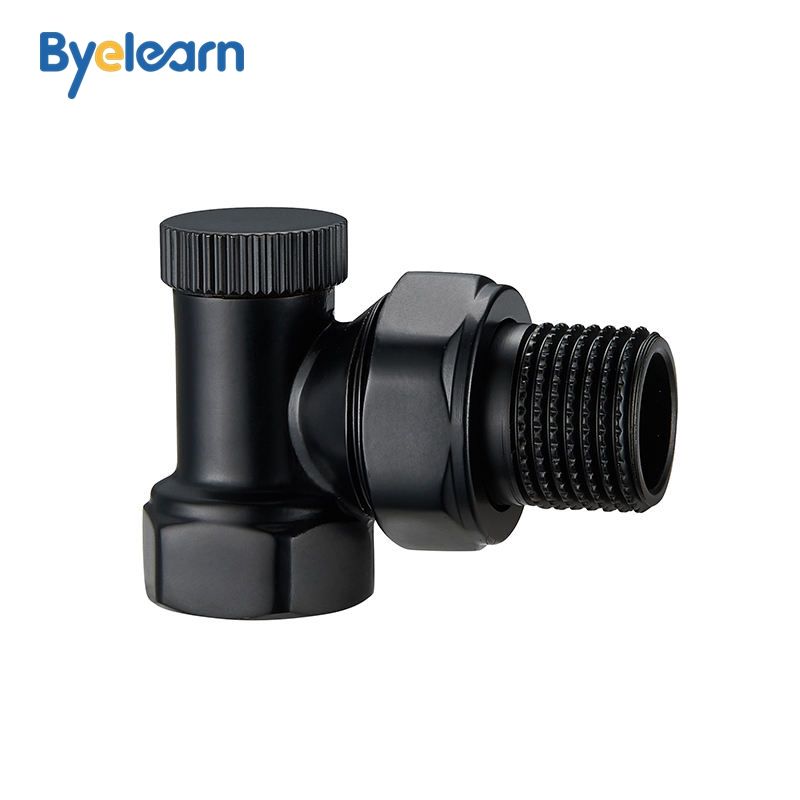

Customizable Brass Black Lockshield Valve is a precision regulating valve designed for high-end HVAC systems, forged with CW617N low-lead brass, with PVD-plated black titanium surface treatment, combining excellent corrosion resistance and decorative properties, suitable for modern architecture and individual heating needs.
Core features
High-end surface treatment
Bottom layer electroplated nickel (15μm) + top layer PVD coated black titanium (3-5μm), hardness ≥ HV800, corrosion and scratch resistant, passed 48 hours salt spray test.
Matte black / gunmetal gray black two-color optional, suitable for different decoration styles.
Precision hydraulic adjustment
60° conical spool + micro-adjustable thread design, flow rate adjustment accuracy ±2.5%, support 0.5-5L/min precision control.
Standard 16-sided adjustment interface, need special key operation, anti-touch design.
Engineering grade performance
pressure resistance PN16 (1.6MPa), burst pressure ≥ 4.0MPa, applicable to -20 ℃ ~ 130 ℃ high temperature hot water / steam.
Flow coefficient Kv 0.48 (DN15)/0.82 (DN20), venturi flow channel to reduce turbulent noise.
