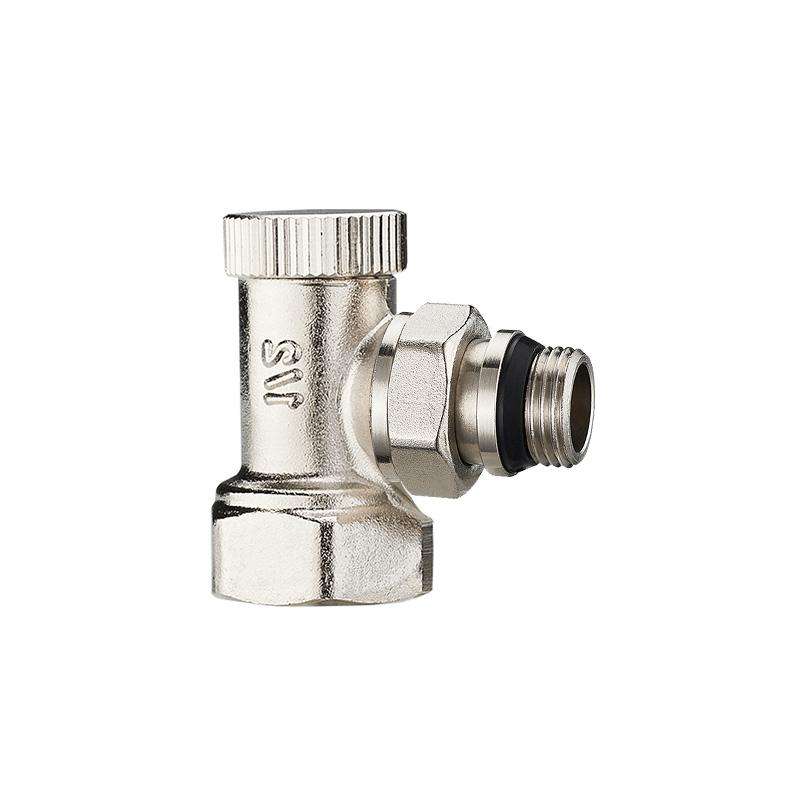

| Name: | Lockshield Valve |
| Model Number: | L3006TA210NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Selection Guide
Residential Projects: DN15 Basic Type
Commercial Systems:
DN20 with Pressure Gauge Interface Version
Nickel-Plated Corrosion-Resistant Version (for highly corrosive environments)
Smart Systems: Expandable Electric Actuator (Torque ≤ 5 Nm)
Typical Applications:
Resolving the ‘hot near, cold far’ issue when multiple radiators are connected in parallel
Energy-saving retrofits for older heating systems
Balancing vertical heating systems in high-rise buildings
This product, featuring precise mechanical adjustment and optimised fluid design, serves as a critical component for hydraulic balancing in modern HVAC systems.
