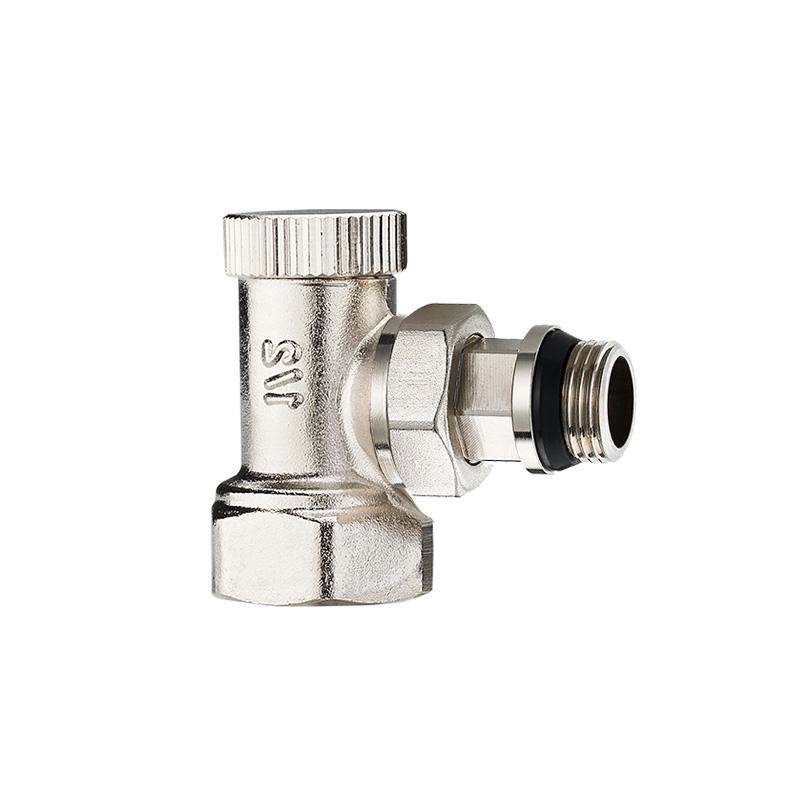

Name: | Lockshield Valve |
Model Number: | L3006TA209NZZ |
Temperature resistance: | ≤ 120°C |
Connection sleeve: | M30 x 1.5mm |
Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
Material: | Brass |
Rated working pressure: | ≤ 1Mpa |
Water pressure: | 10 bar |
Available: | G thread or R thread |
Size: | G1/2 |
Lockshield Valve is a professional regulating valve for radiator return line in HVAC system, which realizes hydraulic balance by precisely controlling the return water flow to ensure even heat dissipation at all ends of the heating system.
Core features
Precise flow rate adjustment
60° conical spool and fine-tuning threads, supporting 0.5-5L/min flow rate adjustment
Every 15° rotation can change the flow rate by about 1.2%, with an adjustment precision of ±3%
Standard 16-sided adjustment interface, requiring special adjustment key operation
Engineering-grade structural design
Valve body material: CW617N low-lead brass (copper content ≥ 58%)
