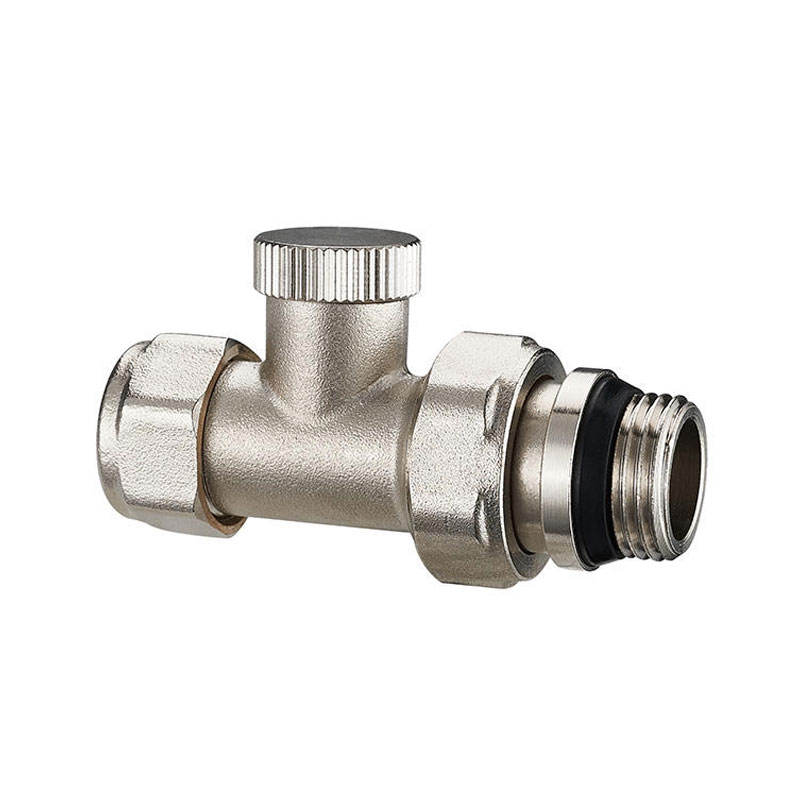

| Name: | Lockshield valve |
| Model Number: | L3005TA204NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Engineering-grade durability
All-metal transmission structure with a service life of over 100,000 cycles
Corrosion-resistant nickel-plated surface treatment with salt spray test exceeding 500 hours
Built-in dust protection cover to prevent debris from jamming the valve core
Intelligent protection features
Self-locking adjustment mechanism to prevent flow deviation caused by vibration
Optional anti-theft adjustment cap (compliant with BS EN 215 standard)
Some models support remote monitoring interfaces
Installation advantages
Compliant with international standards such as EN 215 and DIN 4736
Available in multiple interface specifications including G1/2‘, G3/4’, and G1"
360° rotatable valve body for adaptation to complex installation environments.
