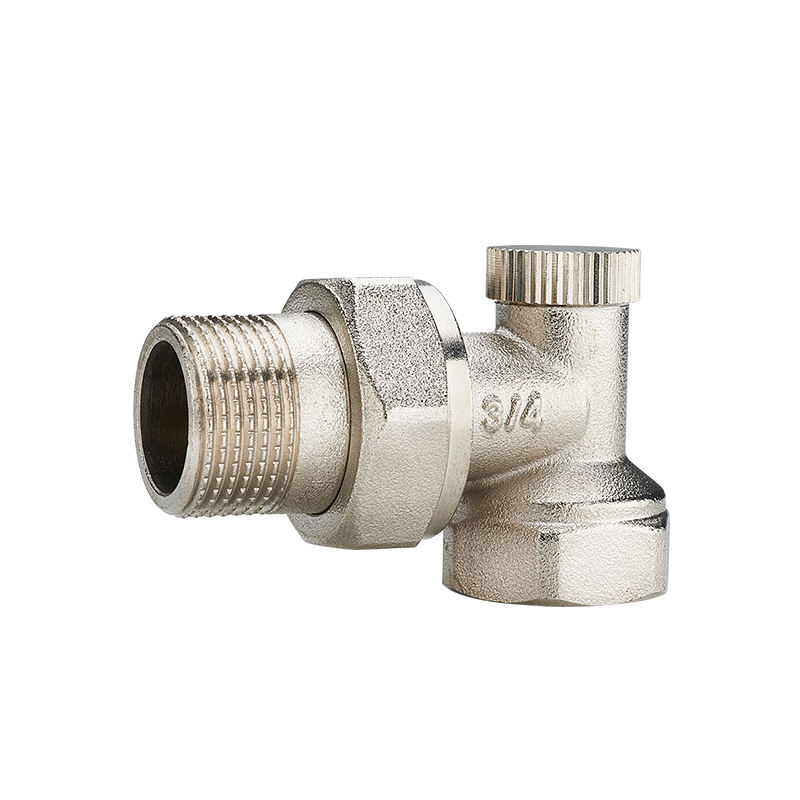

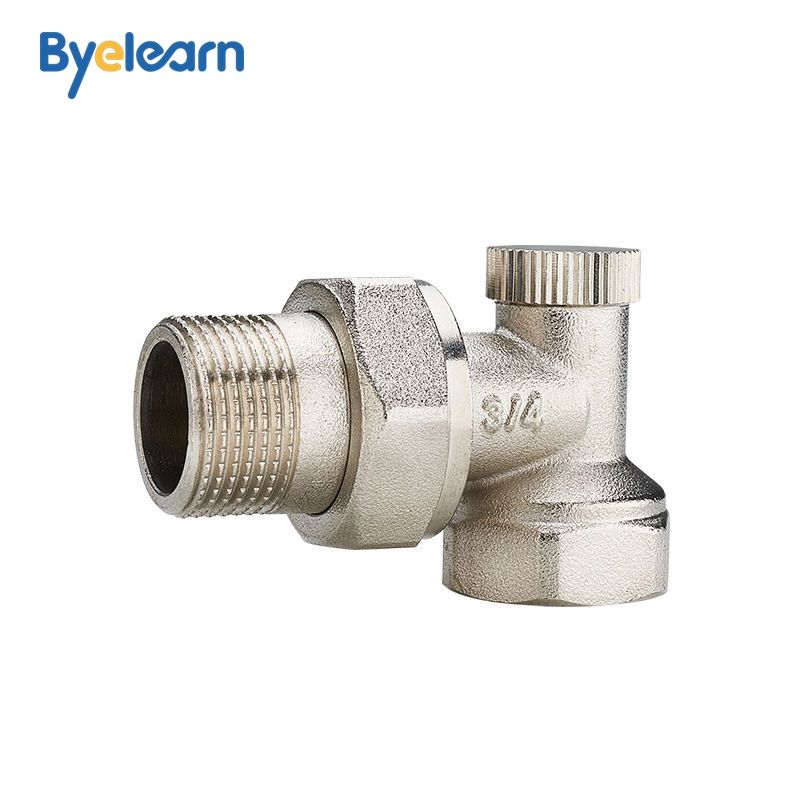

| Name: | Lockshield valve |
| Model Number: | L3006TA202NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G3/4 |
Precision flow adjustment system
Fine-tuning spool structure: conical spool with precision threads, supporting 1/8 turn fine-tuning, flow adjustment range 0.3~6L/min, accuracy up to ±2%.
Anti-slip adjustment interface: 16 angle nickel-plated valve stem is adapted with professional balancing key to prevent tools from slipping.
Flow rate calibration scale (high-end models): intuitive display of the opening degree, to facilitate system debugging.
Nickel-plated surface treatment process
Double plating protection: the base material adopts CW617N low-lead brass, and the thickness of nickel-plated layer on the surface is ≥15μm.
Advantages:
Corrosion resistance is improved by 5 times (comparing with the ordinary brass valves)
High-temperature oxidation resistance (long term resistance to hot water of 120℃)
Surface hardness HV ≥ 300, anti-mechanical abrasion
