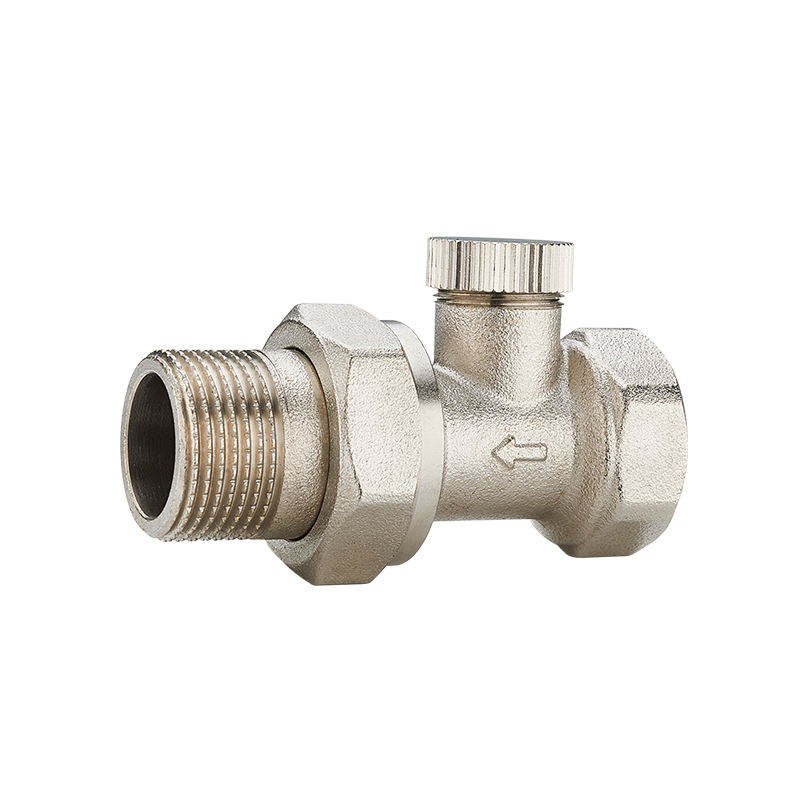

| Name: | Lockshield valve |
| Model Number: | L3006TA204NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G3/4 |
Surface treatment process
Multi-layer electroplating nickel coating (thickness ≥15μm)
Surface hardness up to HV600, wear resistance increased 3 times compared with ordinary brass
Mirror polishing treatment (Ra ≤ 0.8μm), both corrosion resistance and decorative
Precision adjustment system
Micron-grade trapezoidal threaded stem (guide 1.5mm), flow rate adjustment accuracy ±2% per turn
Dual scale indication system (flow rate value/percentage of openness)
Patented anti-subsidence Patented anti-settling spool design, eliminating long-term static seizing.
