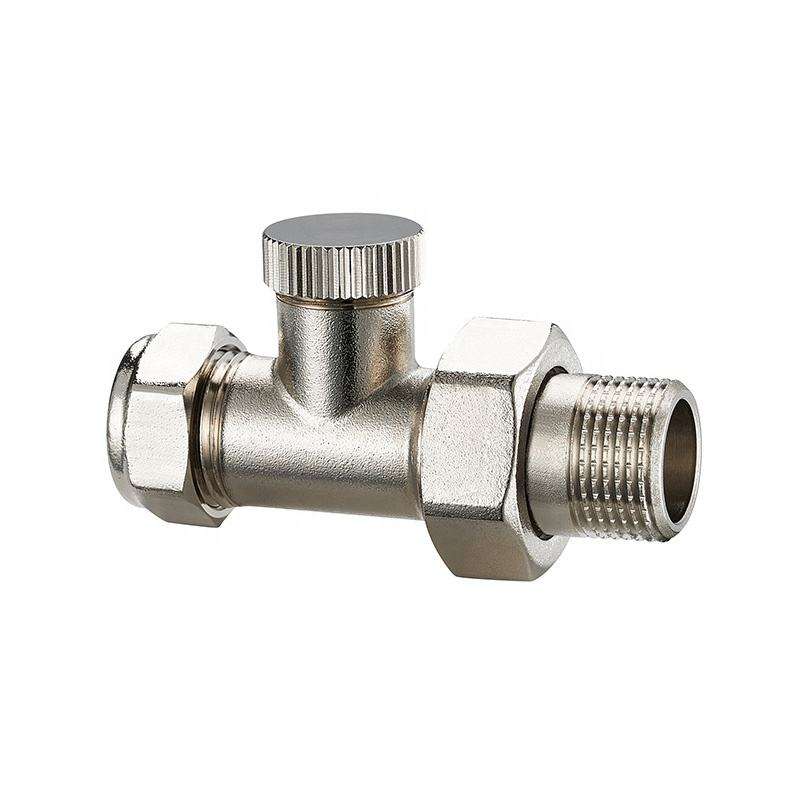

| Name: | Lockshield Valve |
| Model Number: | L3006TA203NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Engineered Seal Design
Stem Seal: Graphite-reinforced PTFE seal ring with 25 Bar pressure resistance and 100,000 cycles of opening and closing life.
Interface seals: EPDM O-rings + metal hard seals with dual redundancy.
Zero leakage standard: EN12266-1 Class A sealing test.
Intelligent system compatibility
Adaptable to a wide range of systems:
Centralized heating (working pressure ≤ 10Bar)
Independent wall-hung boiler system (compatible with low water temperature conditions of condensing furnaces)
Underfloor heating mixing unit return line
