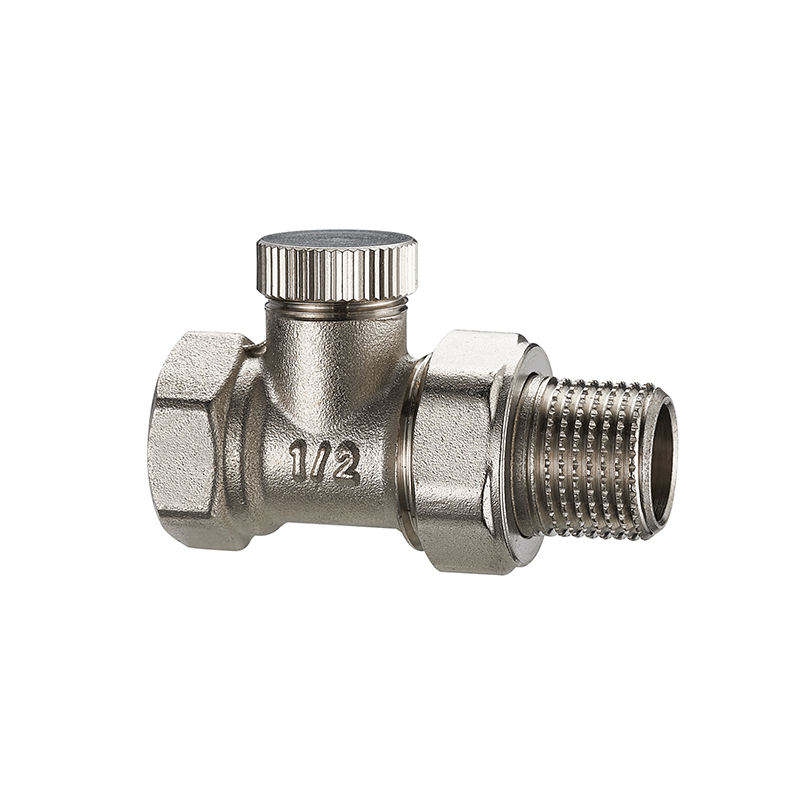

| Name: | Lockshield Valve |
| Model Number: | L3005TA201NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Fluid dynamics optimization
The specially designed conical spool and flow path structure reduces water flow resistance by 40% and reduces pump energy consumption by 15% compared to ordinary valves.
Multi-functional interface design
Standard G1/2" (DN15) female thread interface
Valve body integrated drain port (high-end models)
Expandable installation of electric actuators
Professional installation and maintenance features
Valve body surface with flow scale indication, support ±5% precision adjustment; the bottom of the reserved test port, convenient for system debugging and maintenance.
Scenarios:
centralized heating system hydronic balance
villa / large flat multi-radiator group regulation
hospitals / schools and other places that require high stability of room temperature
