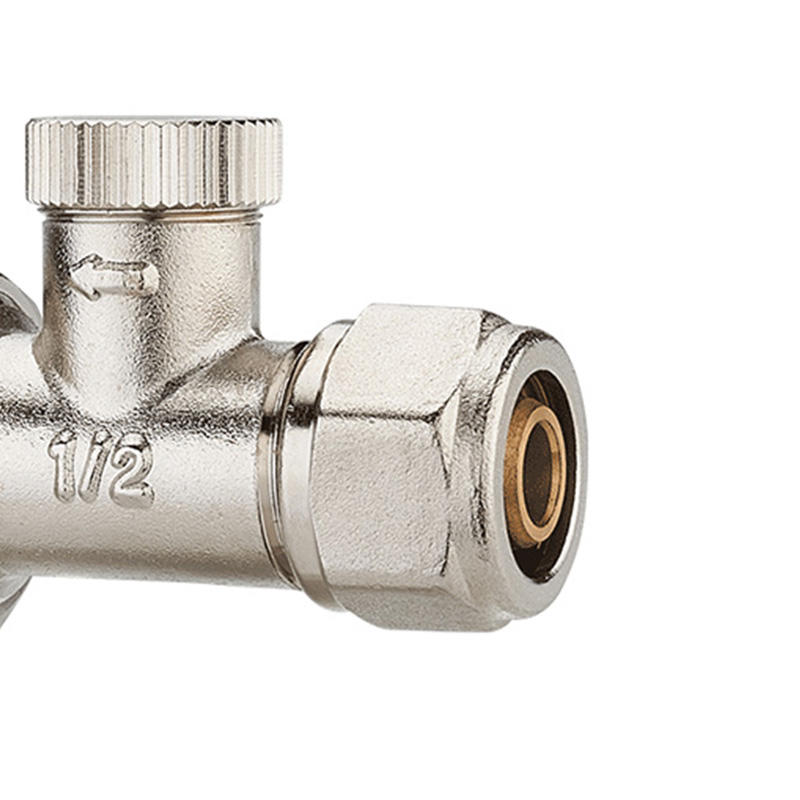

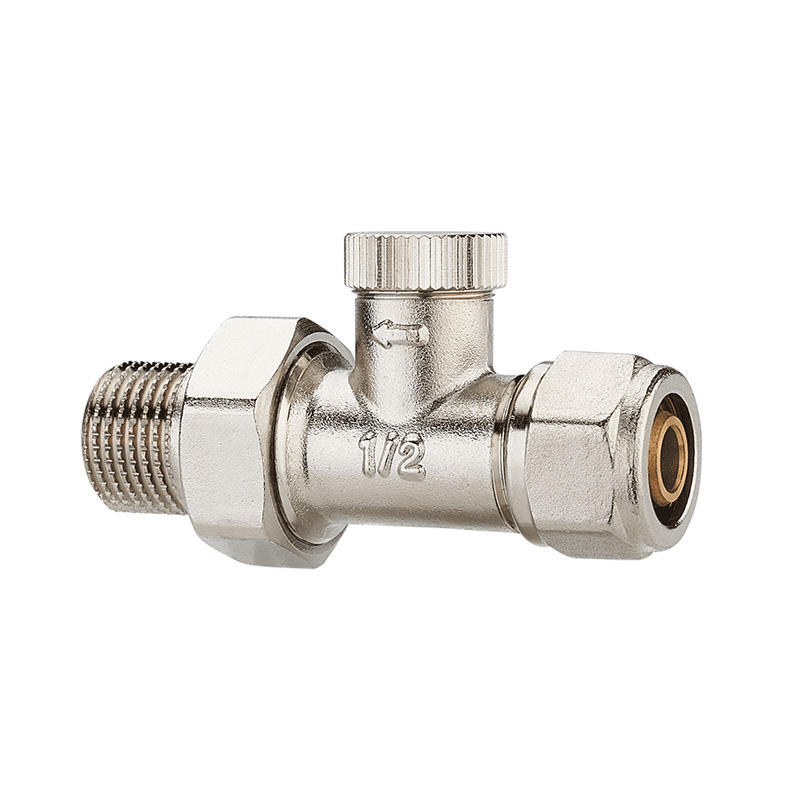

| Name: | Lockshield Valve |
| Model Number: | L3005TA200NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Precise Hydraulic Balance Adjustment
Lockshield return valve adopts precision adjustment spool design, 1/4 turn fine adjustment can be made by special adjustment key, precise control of return water flow, effectively solving the hydraulic imbalance problem when multiple radiators are connected in parallel to ensure the cooling effect of the end of the system.
Engineering grade durable structure
Valve body adopts CW617N European standard brass forging, pressure resistance 16Bar
Valve stem chrome-plated treatment, strong corrosion resistance
Germany imported EPDM sealing ring, temperature resistance 130 ℃
Intelligent anti-mistake operating system
Dual-locking mechanism: the opening can be fixed through the locking nut after adjusting
Anti-tampering protective cover design, special tools are required for operation
