| Name: | Backwater valve |
| Model Number: | L3005TA205GZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |

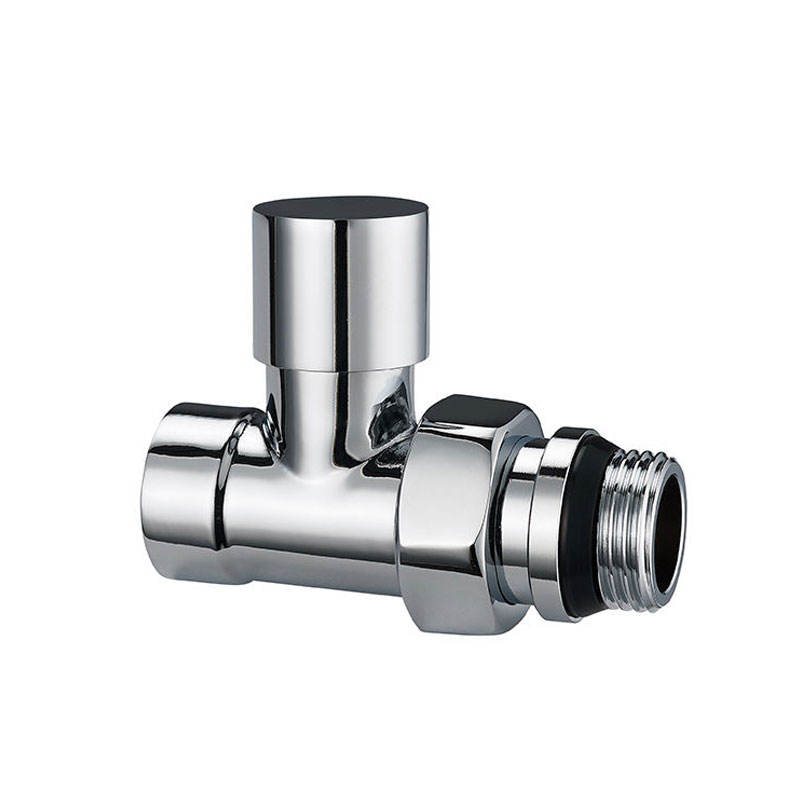

Radiator Return Valve Introduction
The radiator return valve is a critical component in heating systems, installed on the return pipe of the radiator. It is primarily used to regulate or cut off the return water flow, thereby controlling the radiator's heat dissipation efficiency, achieving room temperature regulation, and promoting energy conservation.
Functions and Applications
Flow Regulation: By manually or automatically adjusting the valve opening, the return water flow is controlled, thereby regulating the radiator's heat output to meet the heating requirements of different rooms.
System Balancing: In multi-radiator parallel systems, the return valve balances the hydraulic resistance across branches, preventing uneven heating caused by uneven flow distribution.
Maintenance and Inspection: Closing the return valve cuts off water flow to the radiator, facilitating system maintenance or radiator replacement.
