| Name: | Lockshield valve |
| Model Number: | L3008TA200GZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Product Positioning

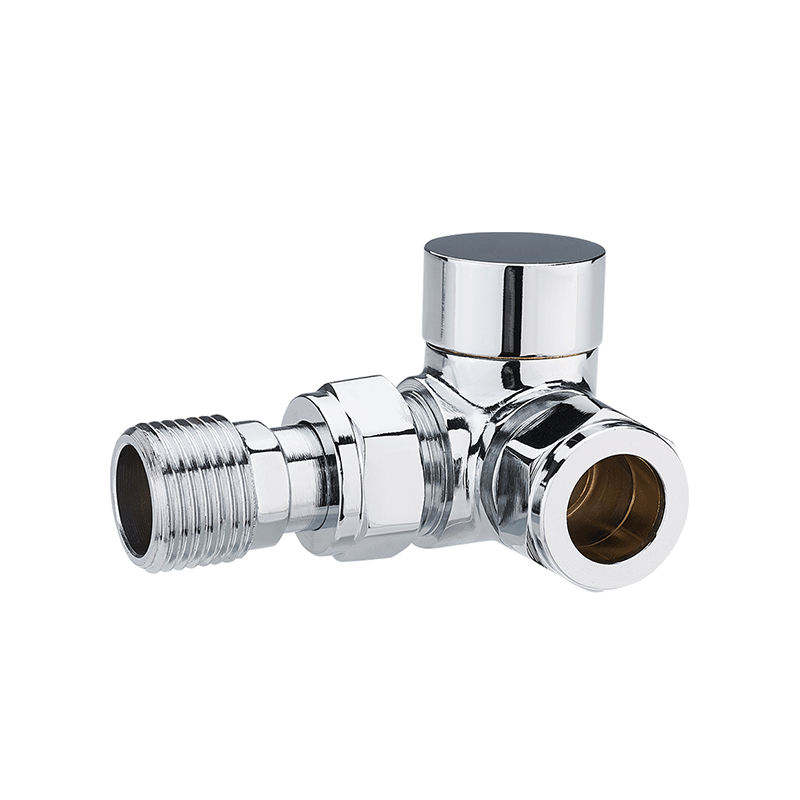

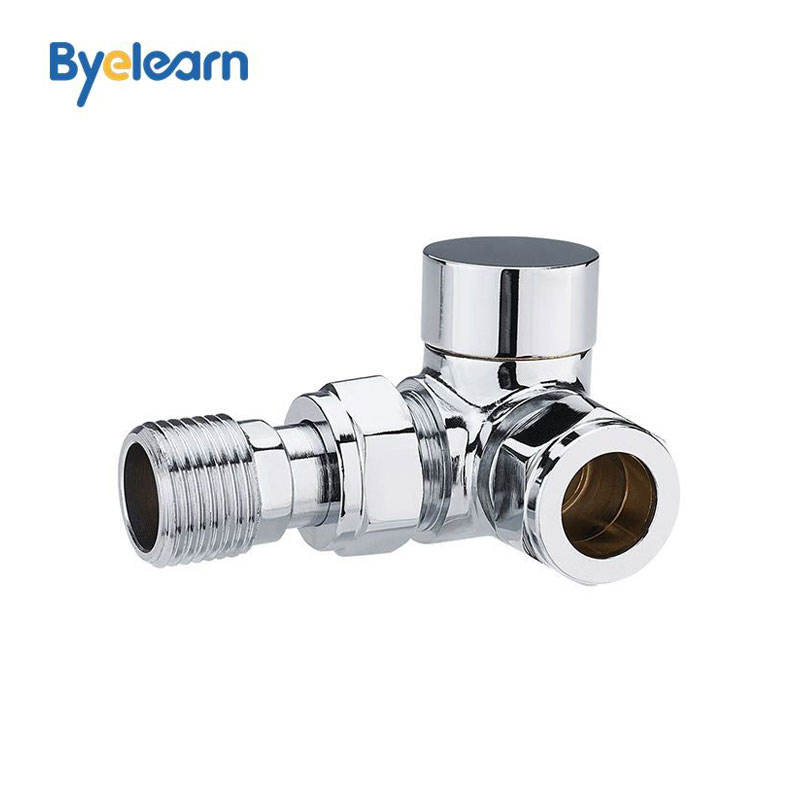

Chrome-plated corner lockshield valve is designed for special installation space design of the return control valve, 90 ° corner structure, suitable for wall mounting or pipeline direction of the restricted conditions, both hydraulic balance function and space optimization features.
Core features
Space-optimized design
90°right-angle valve body structure, saving installation space up to 40%
Inlet/outlet center distance: DN15 (35mm)/DN20 (42mm)
Horizontal/vertical bi-directional installation is supported
Surface treatment
Multi-layer plating process: nickel layer on copper base (15μm) + hard chrome layer (25μm)
Surface hardness HV800-900, wear resistance is increased by 5 times.
