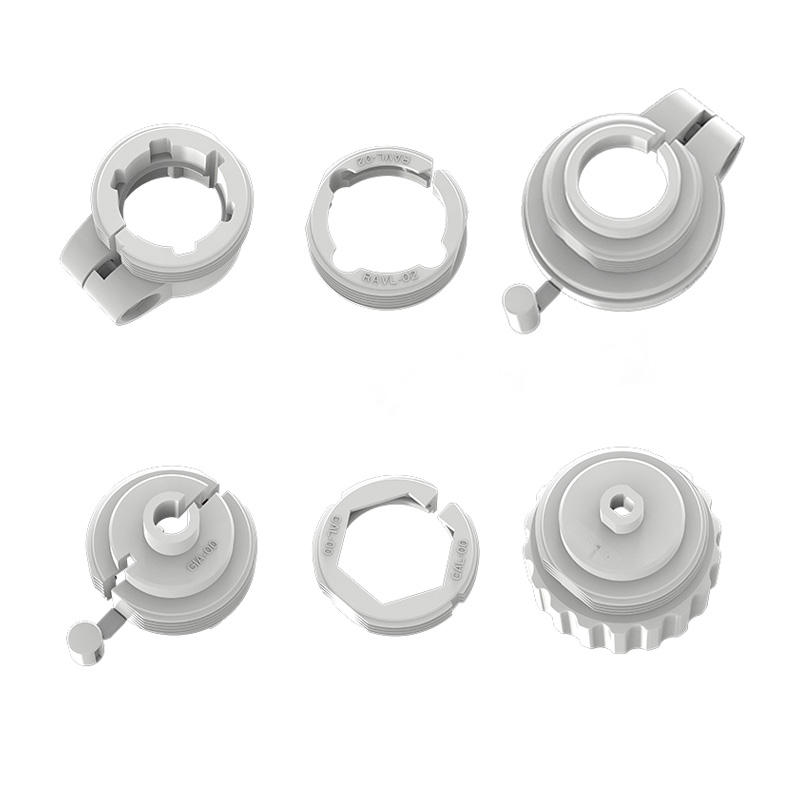

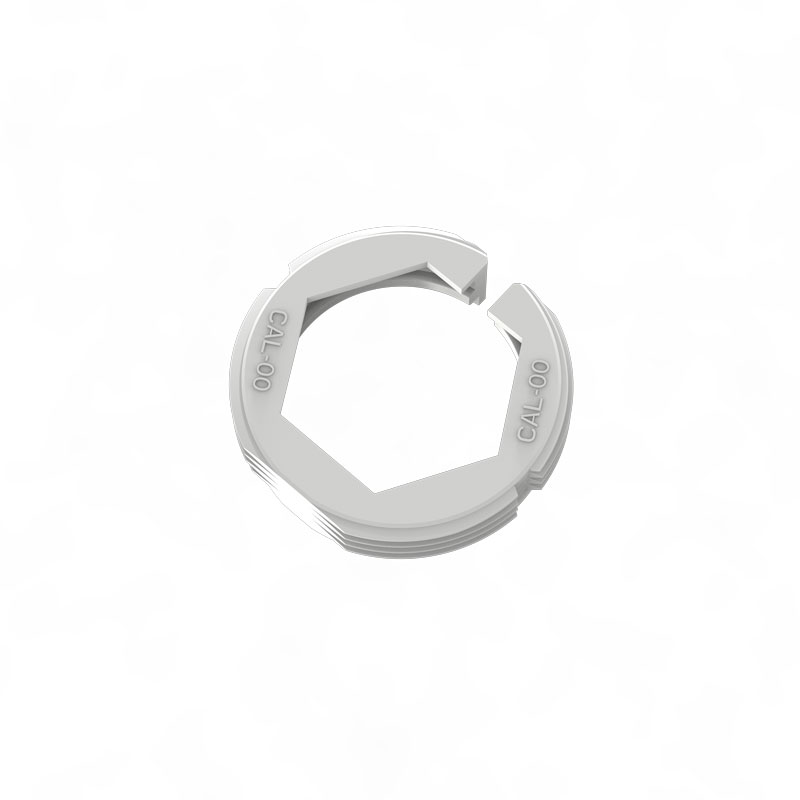

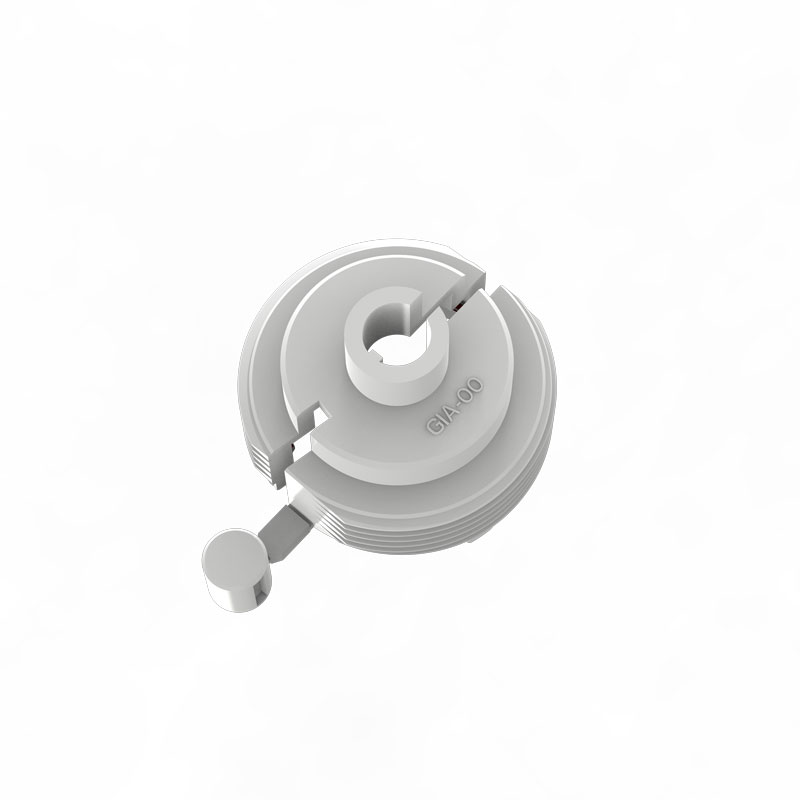

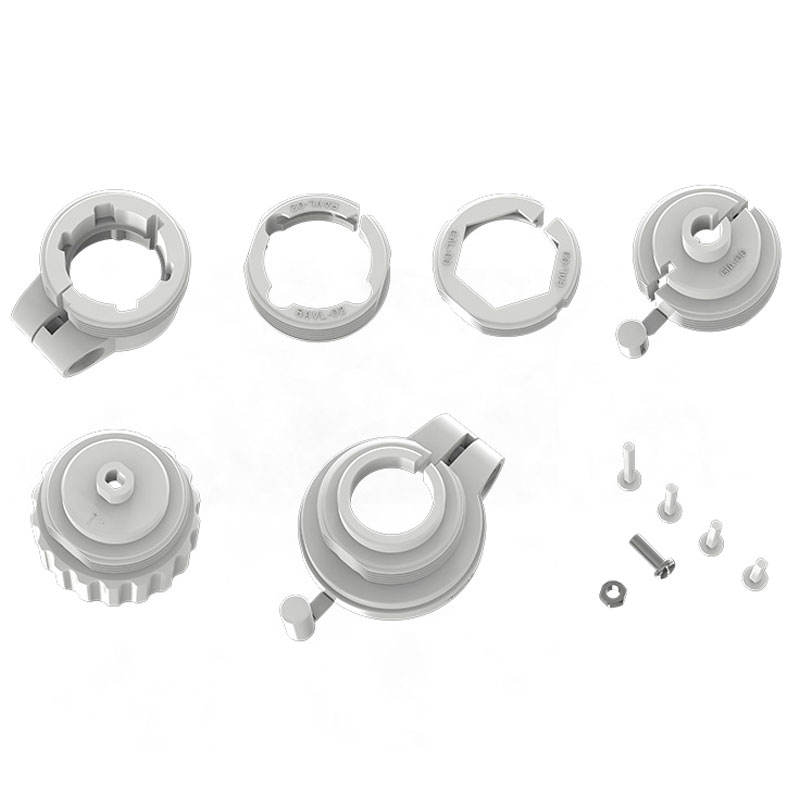

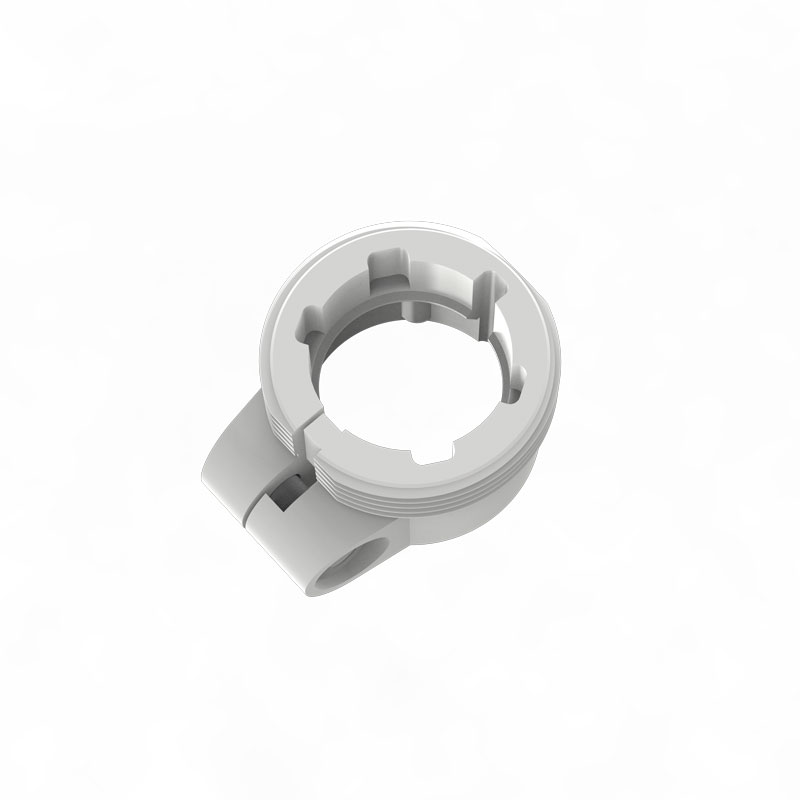

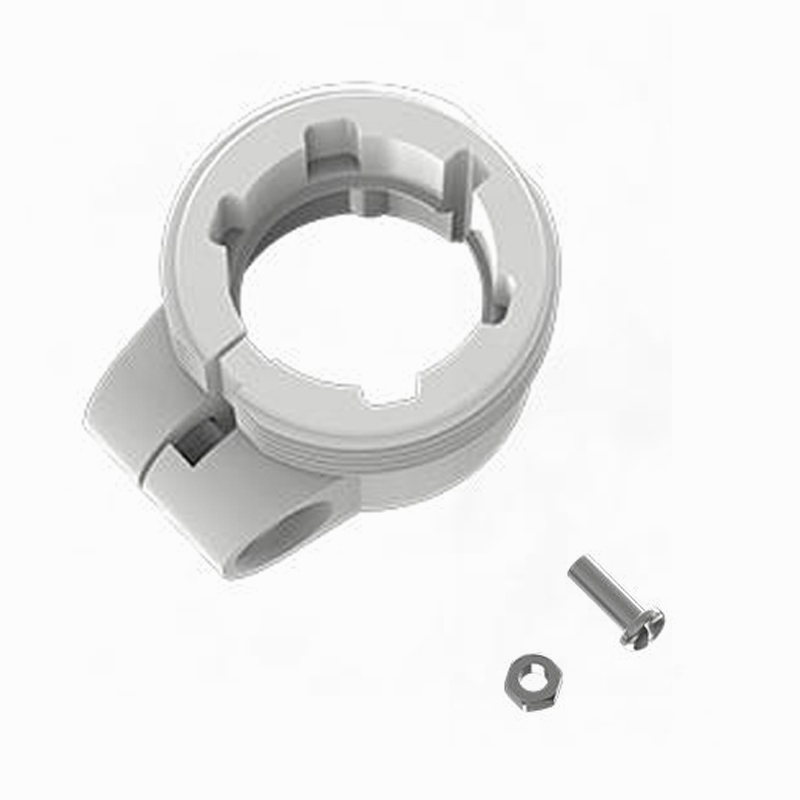

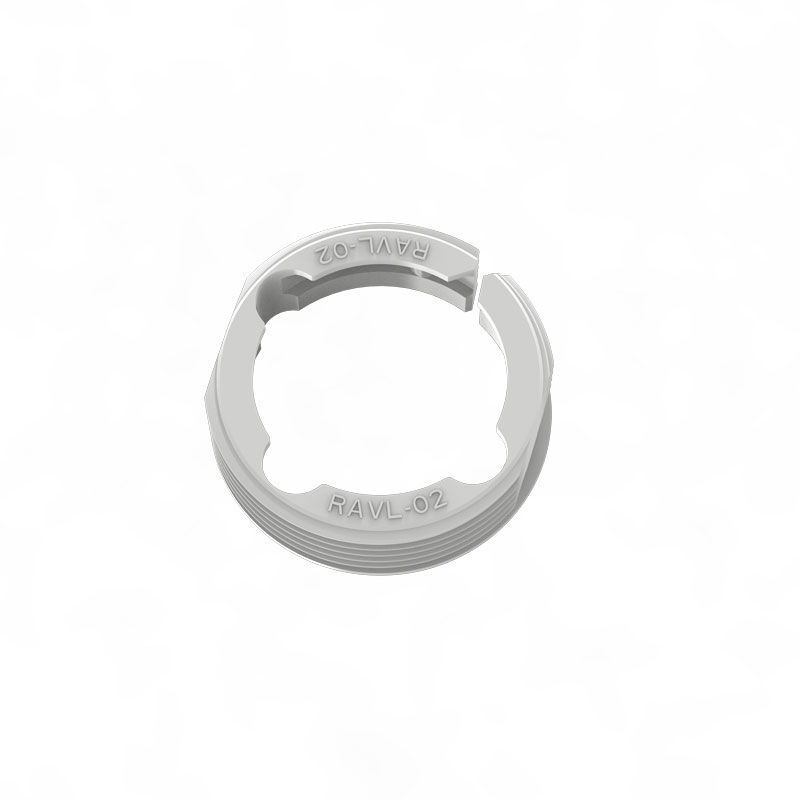

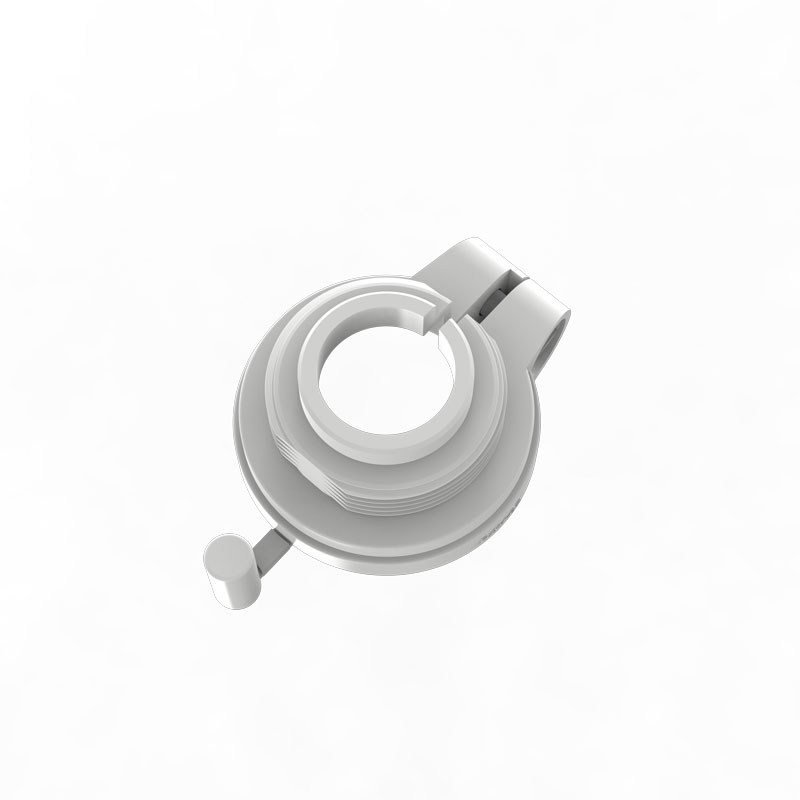

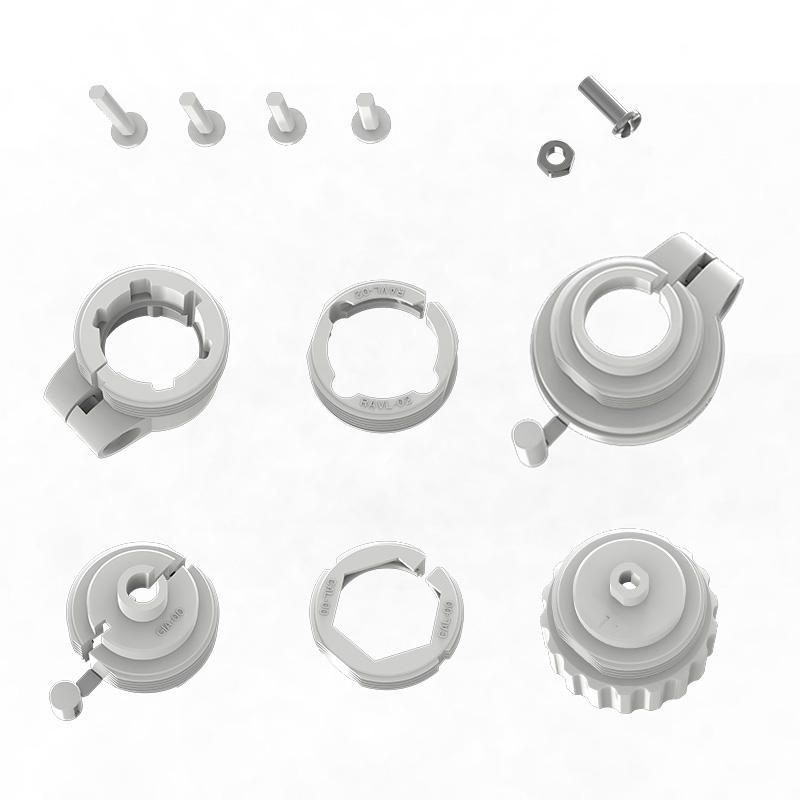

Product Name: TRV Adapter
Model: L0504SF002WZZ
Warranty: 1 year
Type: Underfloor heating fittings
Medium: Water
Material: PA66+GF30%
Maximum Temperature Resistance: ≤ 120°C
Certificates: CE,EN215(Keymark),ISO9001,ISO14001
PA66+GF30% is a high-performance engineering plastic composed of polyamide 66 (PA66) and 30% glass fiber (GF), which combines the toughness of PA66 with the high strength and rigidity of glass fiber, and is widely used in industrial fields with strict requirements for material properties. Here are its core features:
Composition and structure
Base material: PA66 (polyamide 66), a semi-crystalline engineering plastic with excellent abrasion, chemical resistance and self-lubrication.
Reinforcement phase: 30% short glass fiber (GF), which is uniformly dispersed in the PA66 matrix by melt blending technology, which significantly improves the mechanical properties and heat resistance of the material.
Processing technology
Injection molding: the mainstream processing method, which requires strict control of temperature and pressure.
Drying: Dry at 120°C for 4-6 hours to ensure that the moisture content ≤ 0.03%.
Melting temperature: 280-305°C, mold temperature 80-120°C.
Flowability: Medium, the molding quality can be optimized by adjusting the screw speed and holding time.
Post-processing: Surface spraying, plating, or laser engraving can be performed to enhance aesthetics or functionality.
