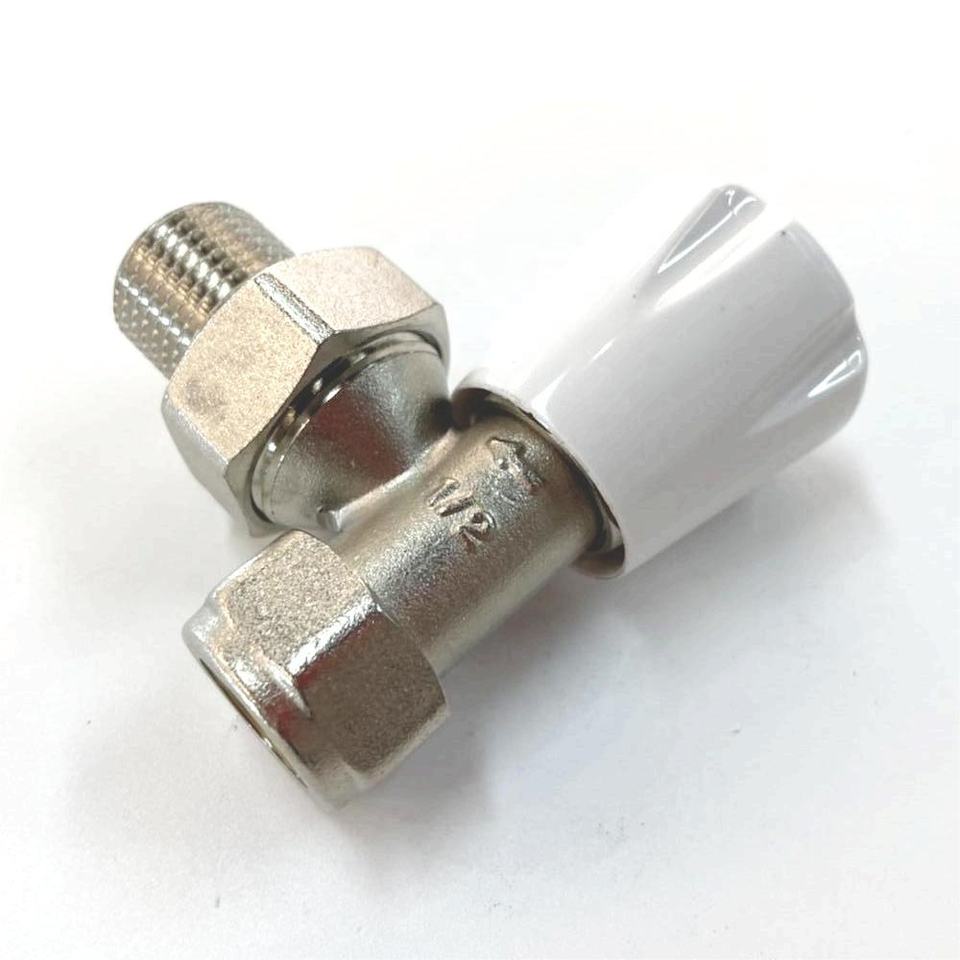

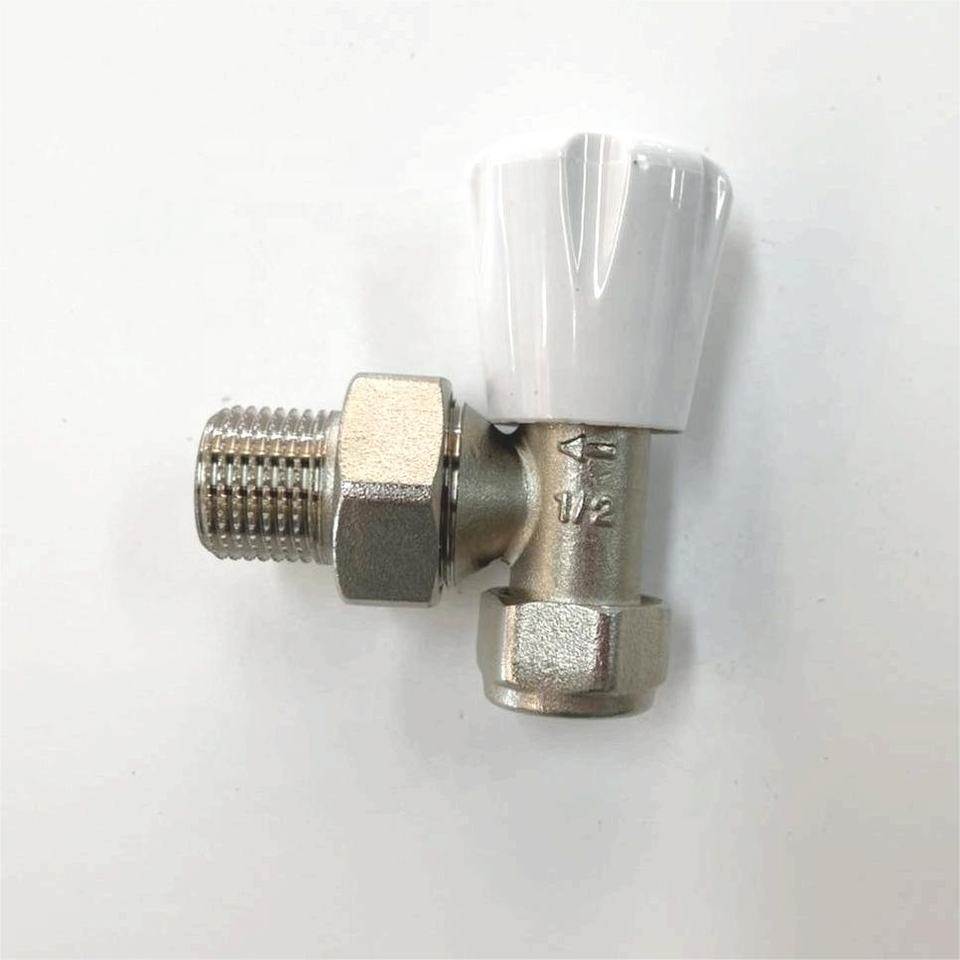

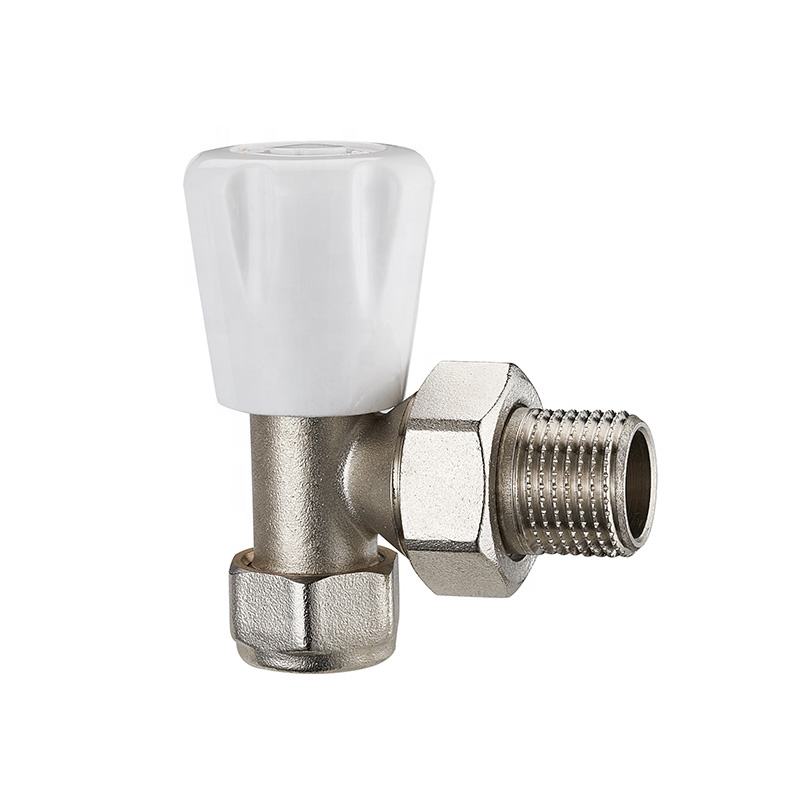

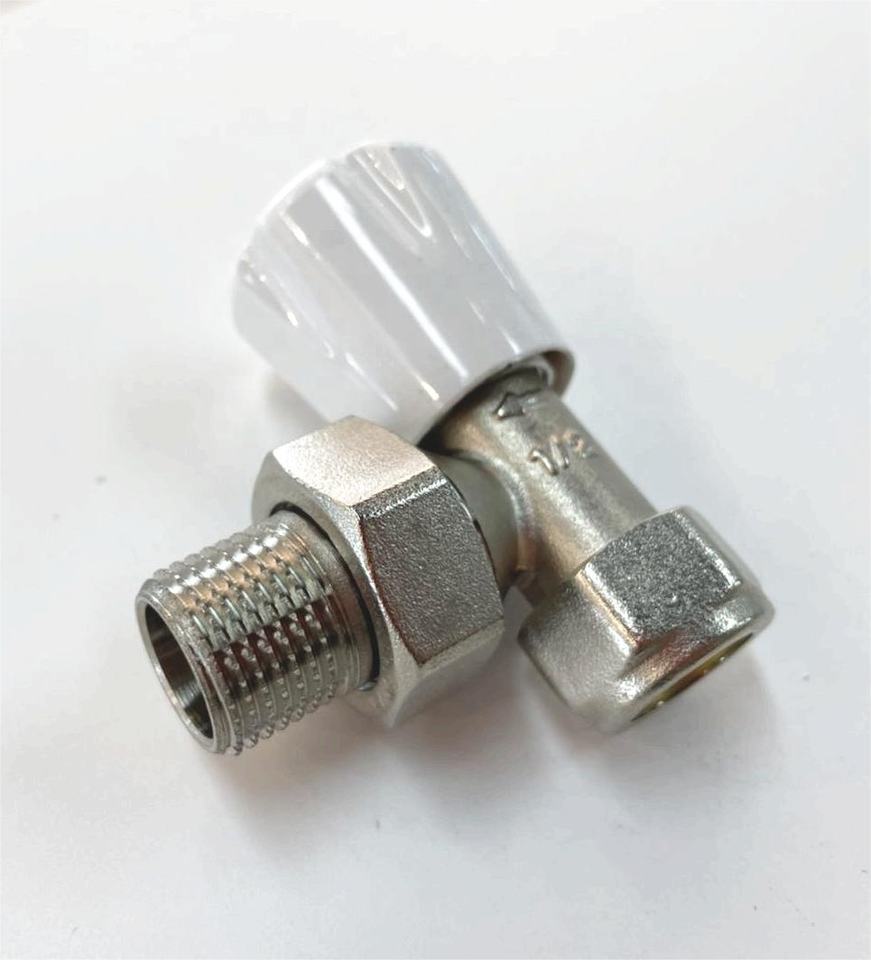

| Name: | Radiator valve |
| Model Number: | L3002TA212NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Core Role
Automatic Temperature Adjustment
The valve head has a built-in temperature packet (temperature sensing element), which automatically adjusts the valve opening and controls the flow of hot water by sensing the ambient temperature, so that the room temperature stabilizes at the user's set value and avoids overheating or waste of energy consumption.
Energy Saving and Consumption Reduction
When the room reaches the set temperature, the valve reduces or shuts off the water flow, reducing the load of the heating system and saving energy (it is estimated that it can save energy by 10%~20%).
Personalized temperature control
Users can manually rotate the valve head to adjust the temperature gear (e.g. marked with 1-5 gears or specific temperature values) to meet the differentiated needs of different rooms.
Convenient Installation
No welding is required for the ferrule connection, which is directly fastened to the pipeline, and the angular structure is adapted to the layout of the inlet and outlet of the heater, simplifying the pipeline direction.
Applicable Scenarios
Suitable for water heating systems (such as floor heating manifolds, radiators), especially suitable for residences, hotels and other places where temperature control is required in separate rooms, to enhance comfort and economy.
