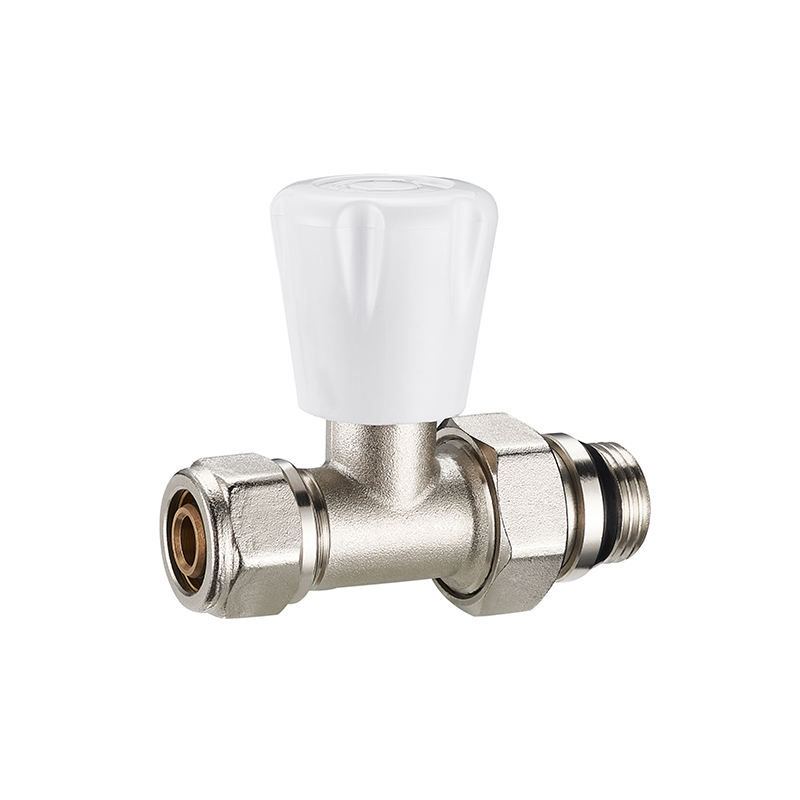

| Name: | Manual Radiator Valve |
| Model Number: | L3003TA210NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Radiator valves are typically made of brass, which has low hardness, is easy to process, and offers excellent thermal conductivity and corrosion resistance. The valve body has a compact structure, incorporating a valve core, temperature sensor, and sealing components to ensure stable water flow regulation. Brass valves have a service life of over 10 years, but should be avoided when exposed to strongly corrosive media.
Radiator valves are suitable for both dual-pipe and single-pipe heating systems and are compatible with copper-aluminium composite radiators, steel radiators, and other equipment. If the heating water has a high mineral content, it is recommended to select valves with built-in filters to extend the system's lifespan.
