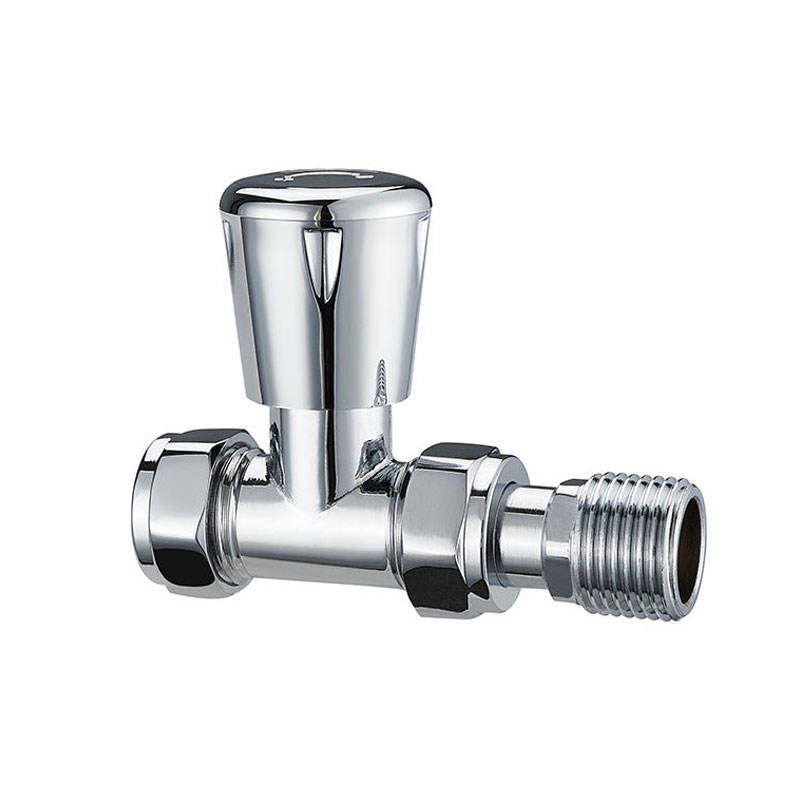

| Name: | Straight radiator valve |
| Model Number: | L3003TA206GZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |
Basic Functions of Radiator Valves
Radiator valves are key components in a heating system and their main functions include isolating radiators, regulating flow and maintaining a constant room temperature. Water flow is controlled via inlet or return valves to ensure that each group of radiators receives the required flow and to avoid hydronic misalignment. The core design is based on a balance of valve weights and differential pressures to ensure stable flow regulation. In two-pipe systems, temperature control valves with built-in pre-setting devices overcome gravity-induced vertical misalignment and optimize the hydronic balance.
