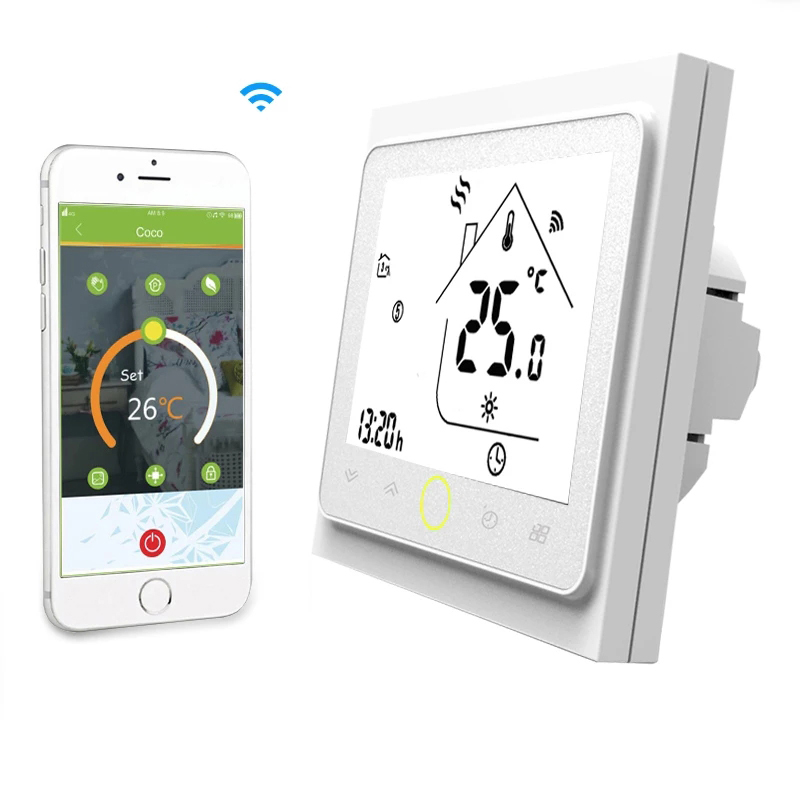

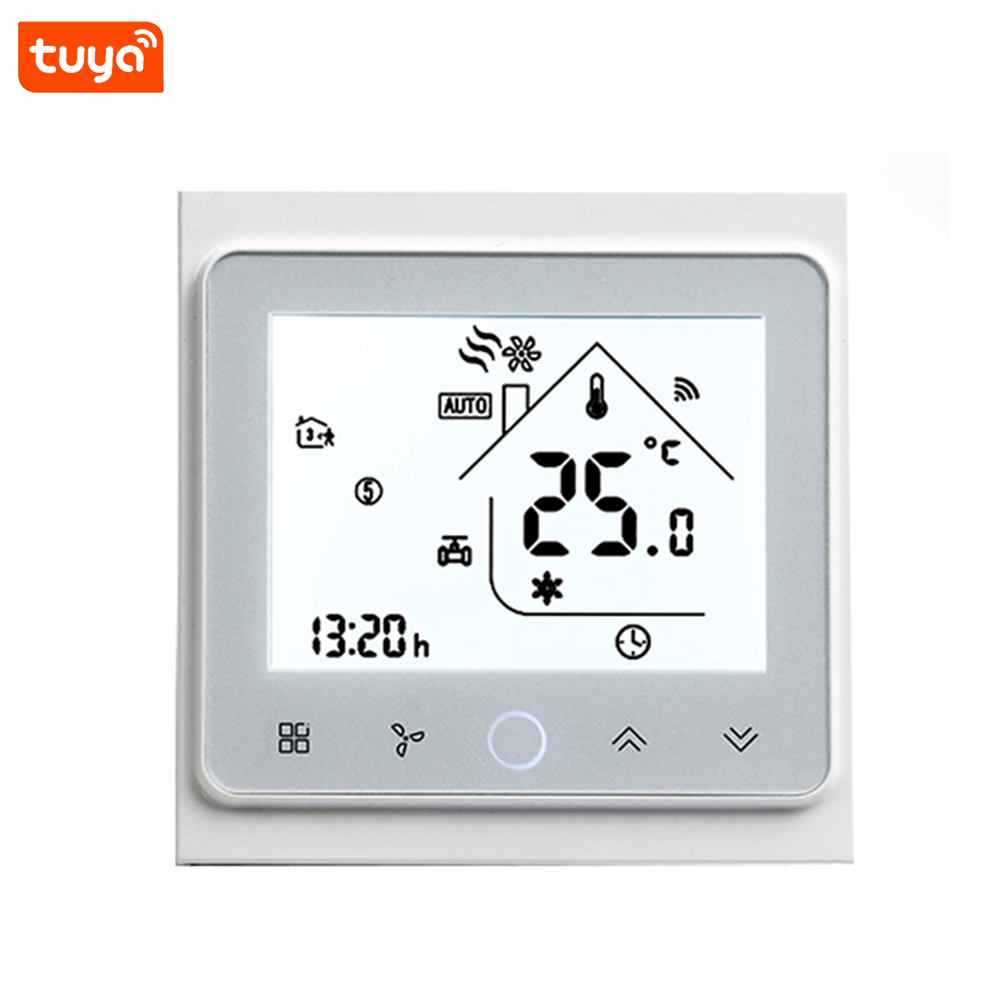

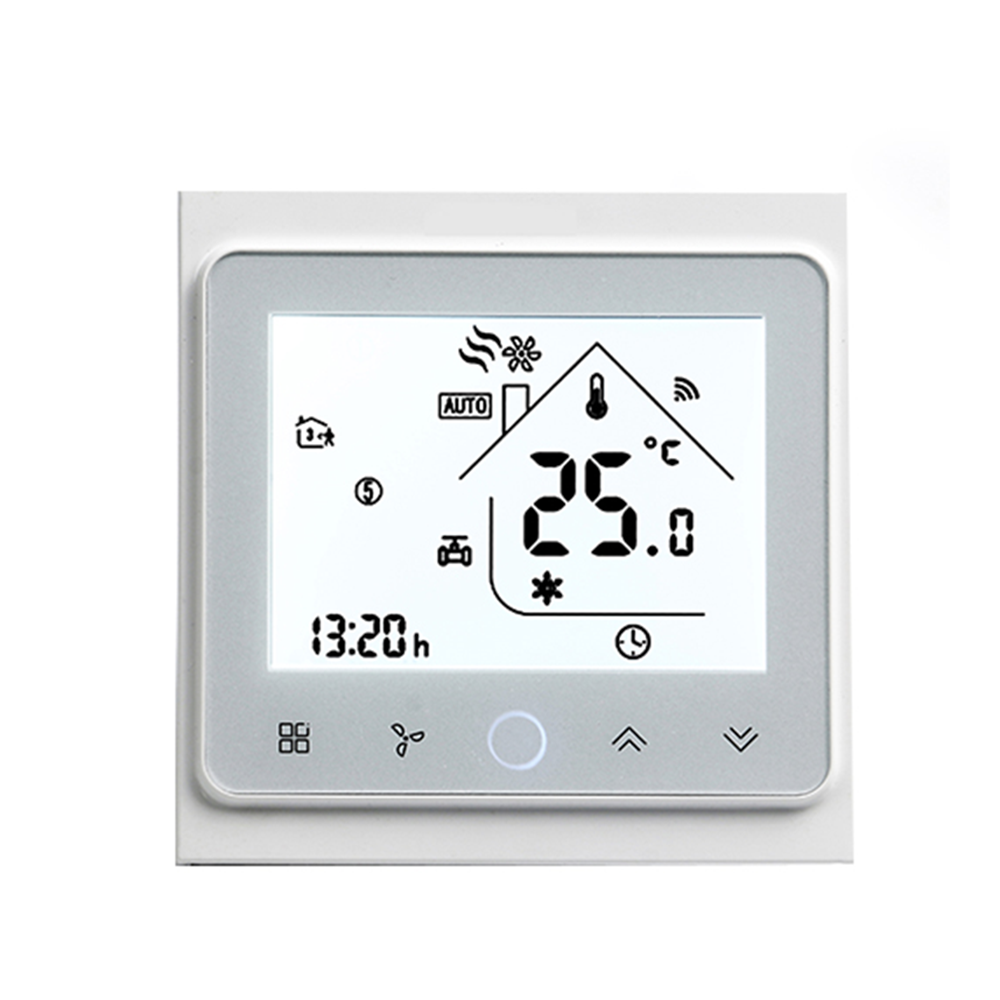

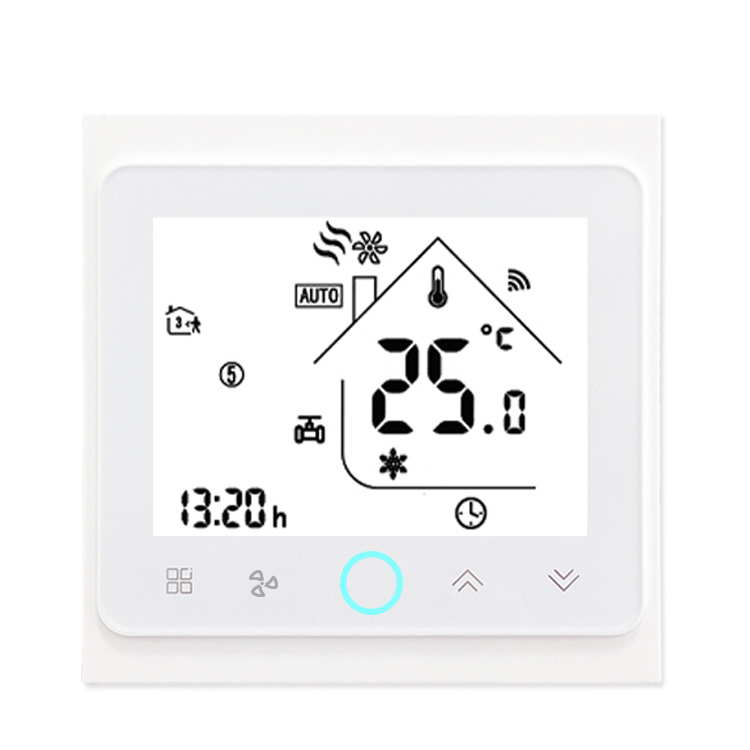

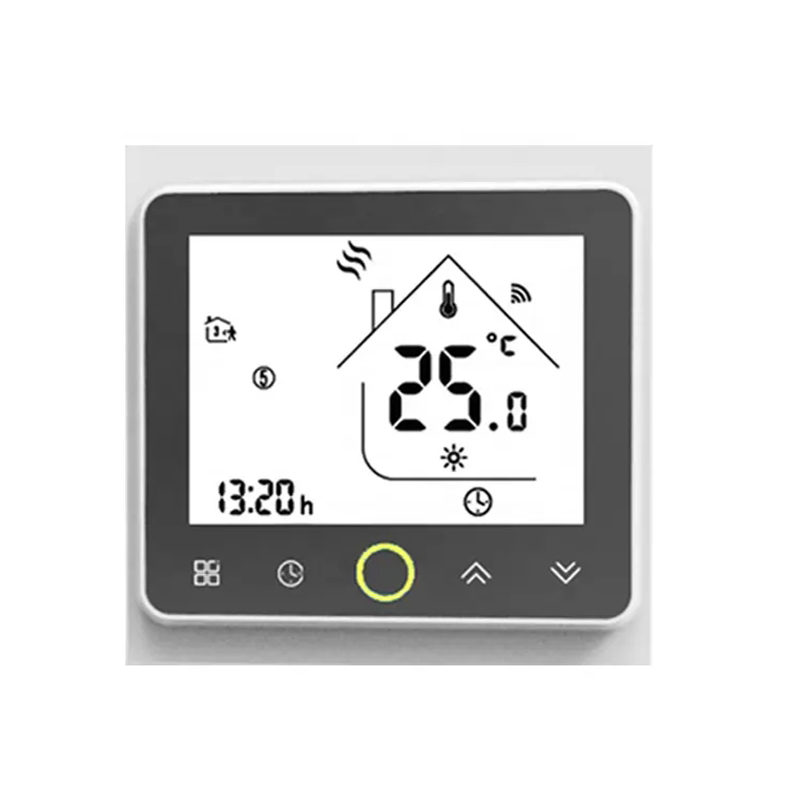

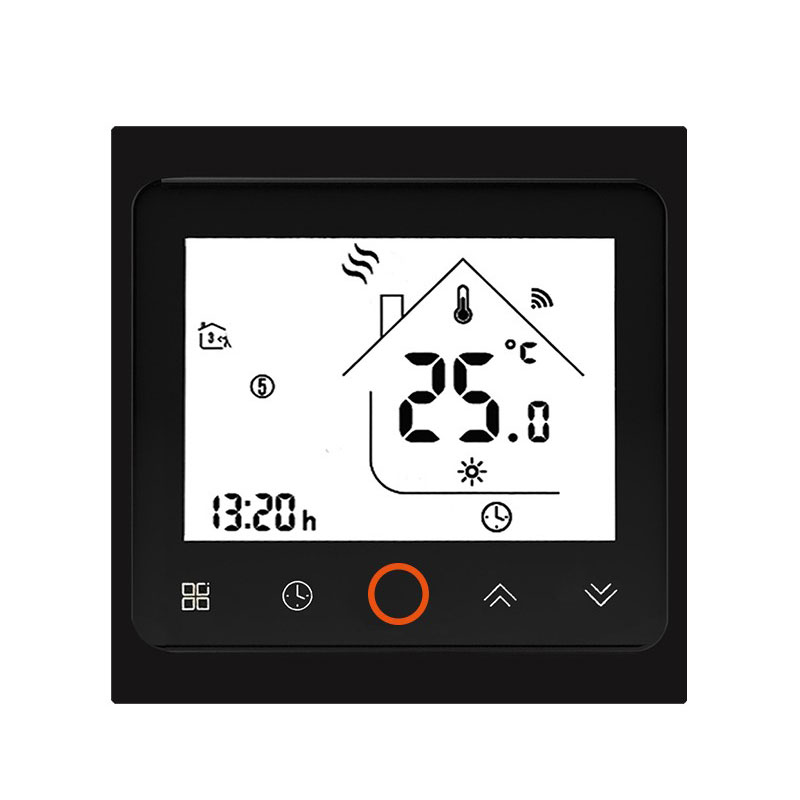

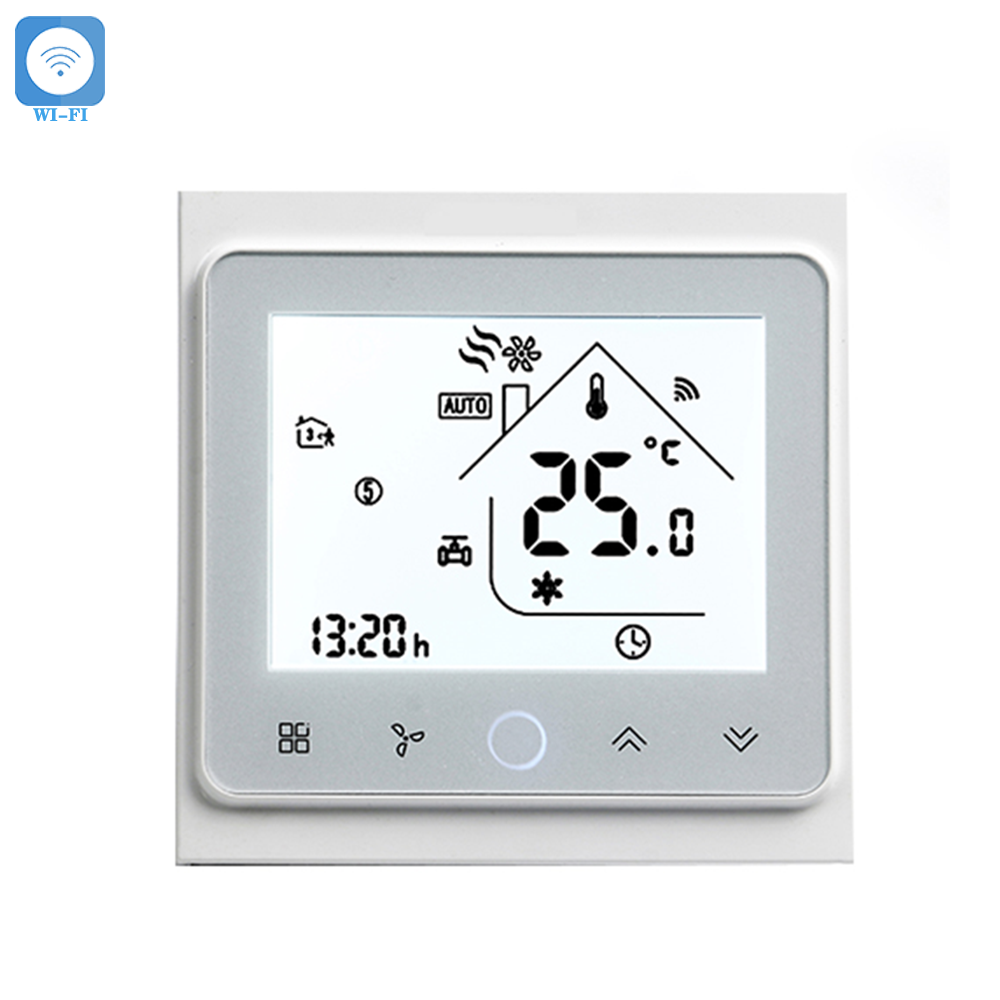

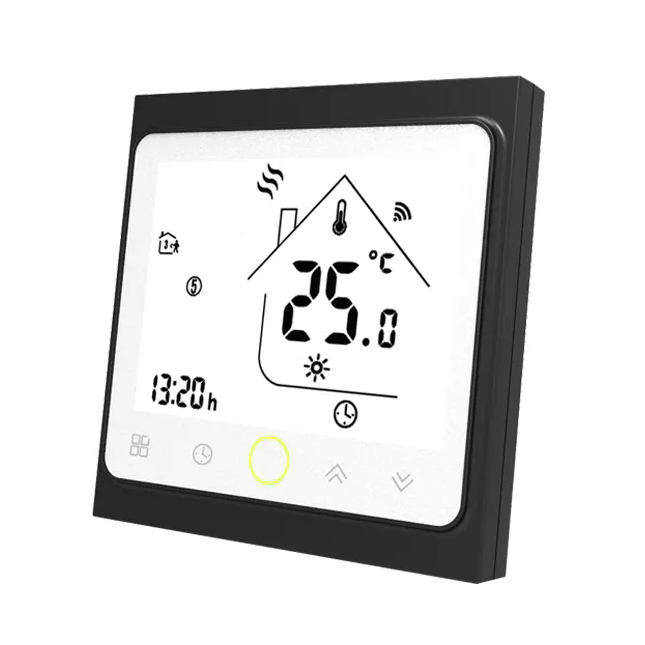

| Name: | Room Thermostat |
| Model Number: | BAC-002 |
| Warranty: | 1 year |
| Working Voltage: | 95~240VAC,50~60HZ |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| System Piping Configuration: | 2-Pipe/4-Pipe |
| Power consumption: | ≤1.5W |
| Fan: | 3-speed |
| Temperature control accuracy: | ±0.5–±1°C |
Air conditioning control panels (central air conditioning thermostats) are designed for use with water-cooled fan coil units. They are installed in 86-mm flush-mounted boxes on room walls and are used to set the room temperature, control the three-speed operation and start/stop of the fan, and activate electric two-way or four-way valves. These panels enable constant-temperature control for cooling, heating, and ventilation in rooms and are widely used in water-cooled air conditioning systems in hotels, office buildings, shopping malls, and residential settings. They are available in two main configurations: two-pipe and four-pipe systems.
