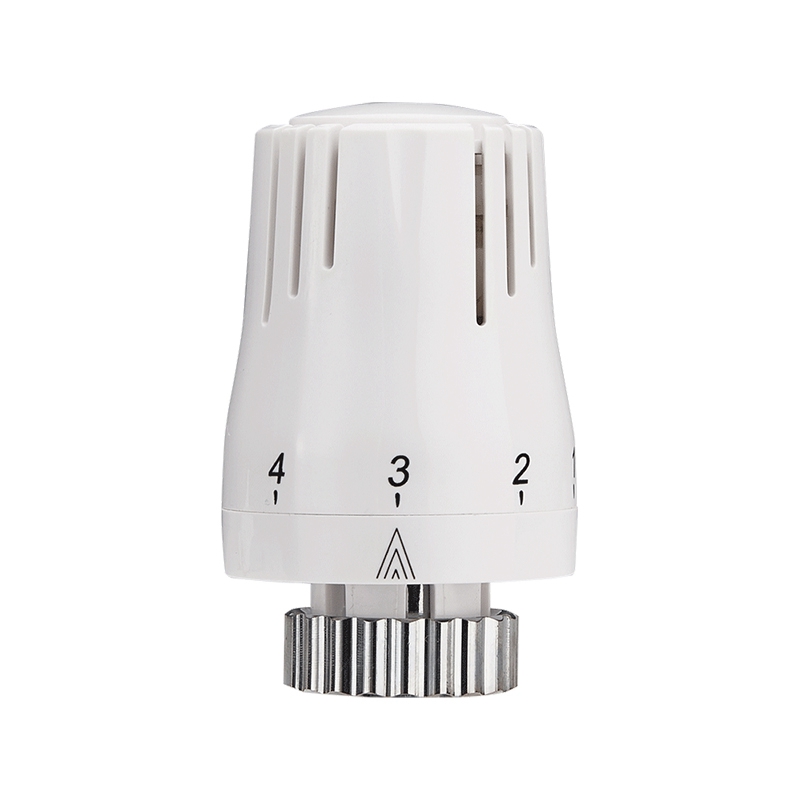

| Name: | Radiator thermostatic | |
| Model Number: | ||
| Warranty: | 1 year | |
| Maximum temperature: | ≤ 120°C | |
| Connection sleeve: | M30 x 1.5mm | |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 | |

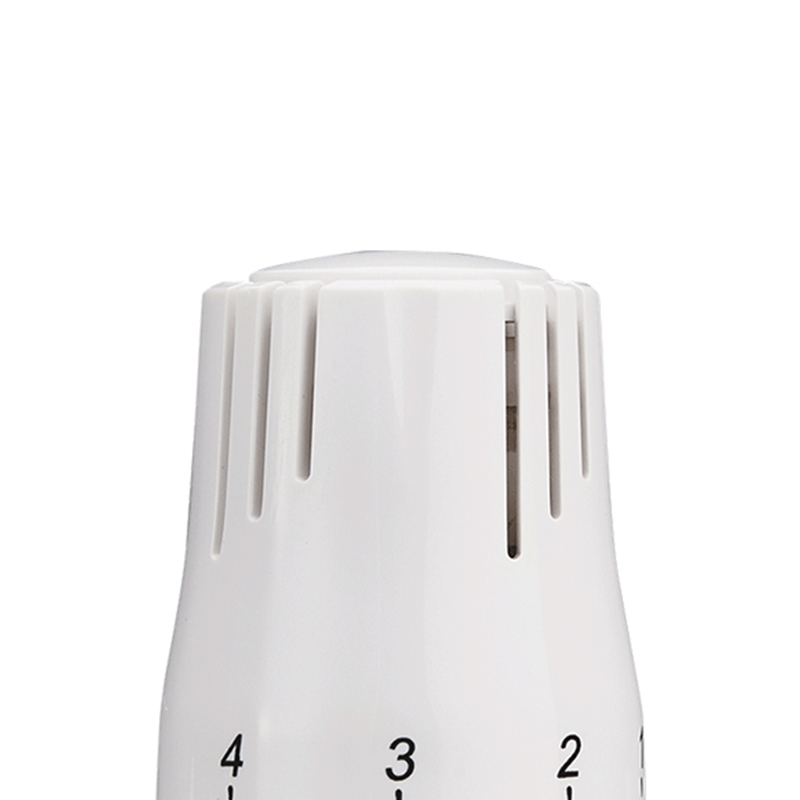

| Adjustment scale printed on the head: | 0,*,1,2,3,4,5 | |
| Stroke: | 5.6 mm | |
| Temperature range: | 6 ~ 28 °C | |
| Housing material: | ABS injection moulding | |
| Finish: | Injection molded white |
Key Benefits:
No power supply required: It does not rely on batteries or external power sources, and it is easy to install, suitable for old residential areas or temporary heating places.
Energy saving and consumption reduction: avoid continuous high-temperature operation of heating, which can save 10%~15% of energy compared with manual valves.
Durable and anti-interference: all-metal (copper/stainless steel) valve body + ceramic valve core, high temperature resistance, anti-corrosion, service life of more than 10 years.
Compatibility: Standard M30×1.5 or M28×1.5 threaded interface, suitable for most radiators and manifolds.
Safety and anti-freezing: Some models have low temperature protection function, and the anti-freeze mode will be automatically turned on when the ambient temperature < 5°C.
Applicable scenarios

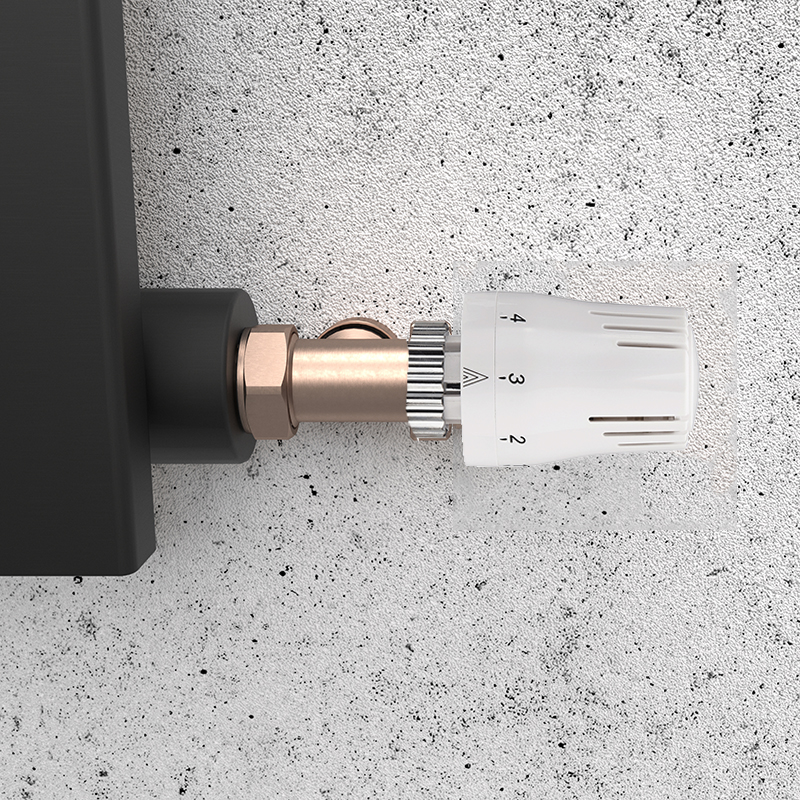

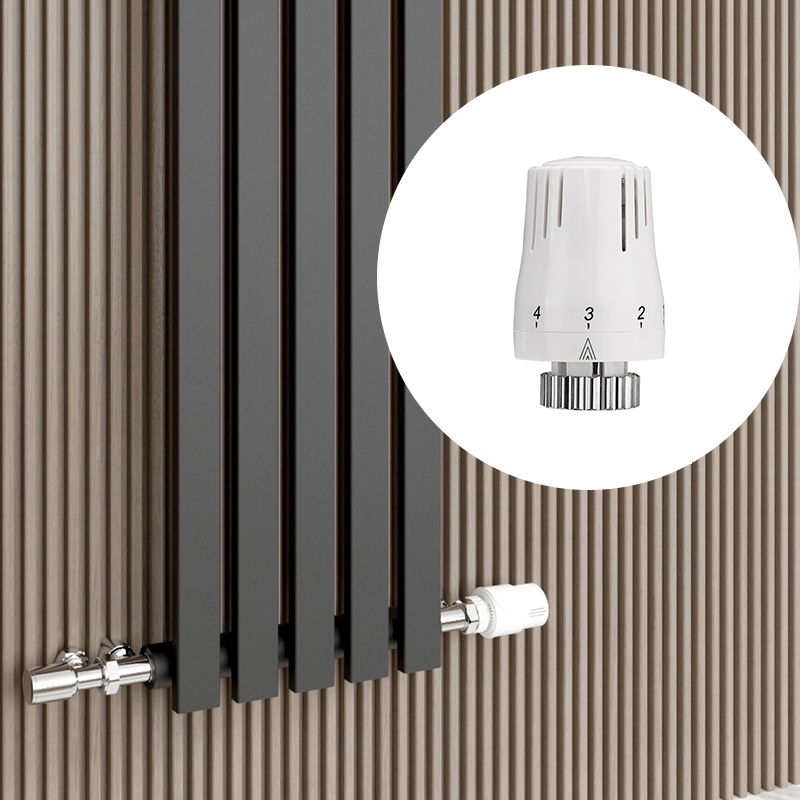

Radiators for home, school, office, etc
Household temperature regulation of the central heating system
Single-circuit basic temperature control of floor heating water separator
Cost-sensitive scenarios or scenarios that don't require intelligent control
Due to their cost-effectiveness and maintenance-free nature, mechanical temperature control valve heads remain the preferred temperature control solution for many conventional heating systems.
