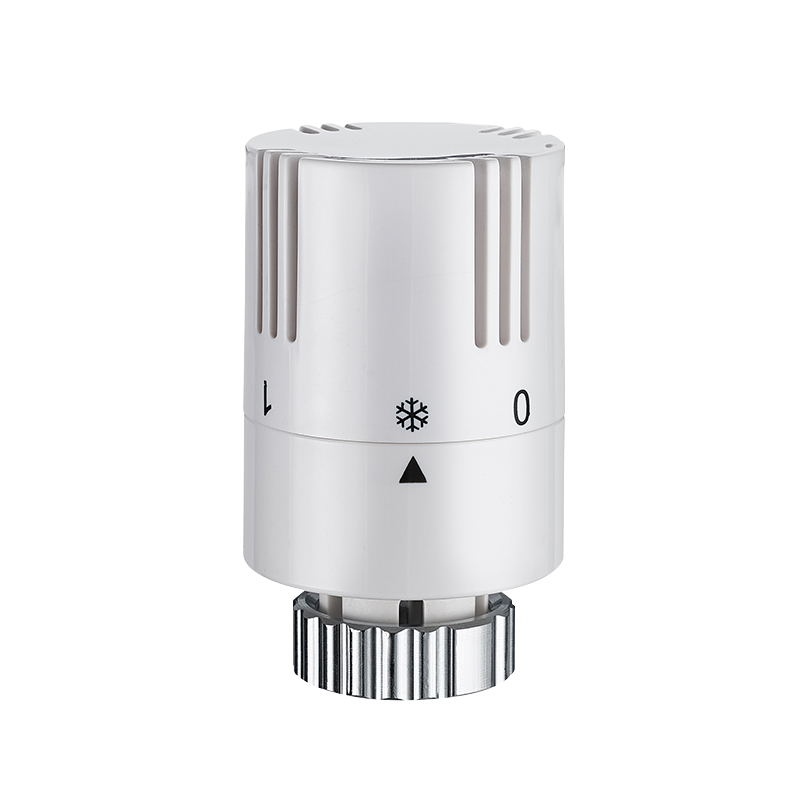

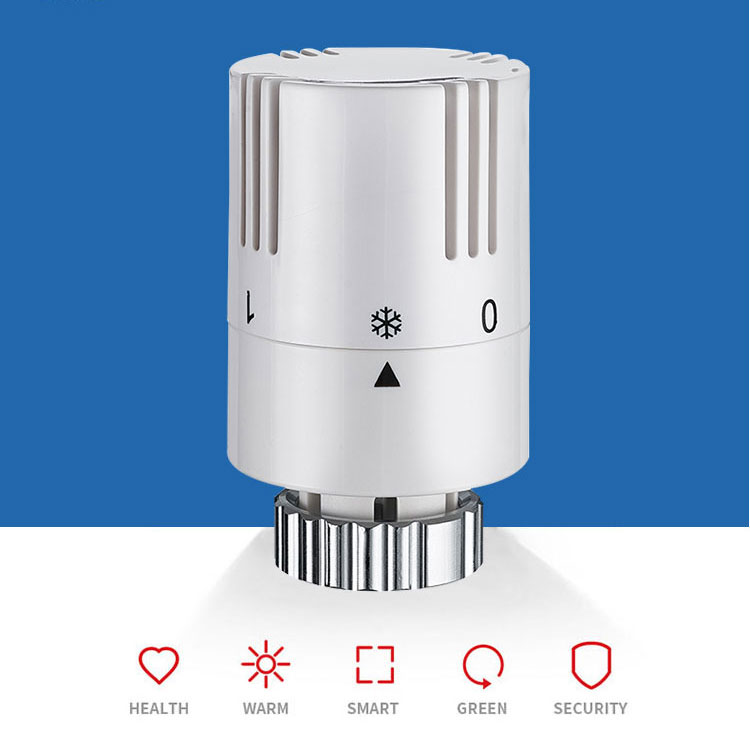

| Name: | Radiator thermostatic | |
| Model Number: | ||
| Warranty: | 1 year | |
| Maximum temperature: | ≤ 120°C | |
| Connection sleeve: | M30 x 1.5mm | |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 | |
| Adjustment scale printed on the head: | 0,*,1,2,3,4,5 | |
| Stroke: | 5.6 mm | |
| Temperature range: | 6 ~ 28 °C | |
| Housing material: | ABS injection moulding | |
| Finish: | Injection molded white |
Precision Thread Seal
Adopts M30×1.5mm metric fine thread, with copper sealing ring and O-ring double sealing structure, achieving zero leakage under 16Bar working pressure, compatible with European standard EN215 and national standard radiator valve body.
Dynamic flow regulation
Built-in conical spool and high sensitivity wax temperature sensing package, response speed <8 minutes, according to the room temperature can automatically adjust the water flow (adjustment ratio of 10:1), to ensure that the cooling efficiency of the radiator and the room temperature linear match.
Engineering grade resistant design
Valve body is forged CW617N leaded brass, chlorine ion corrosion resistant (passed 500 hours salt spray test)
Temperature sensing package working range -20℃~120℃, suitable for low temperature underfloor heating/high temperature radiator system
Anti-tampering and anti-theft structural design, avoiding unauthorised adjustment.
