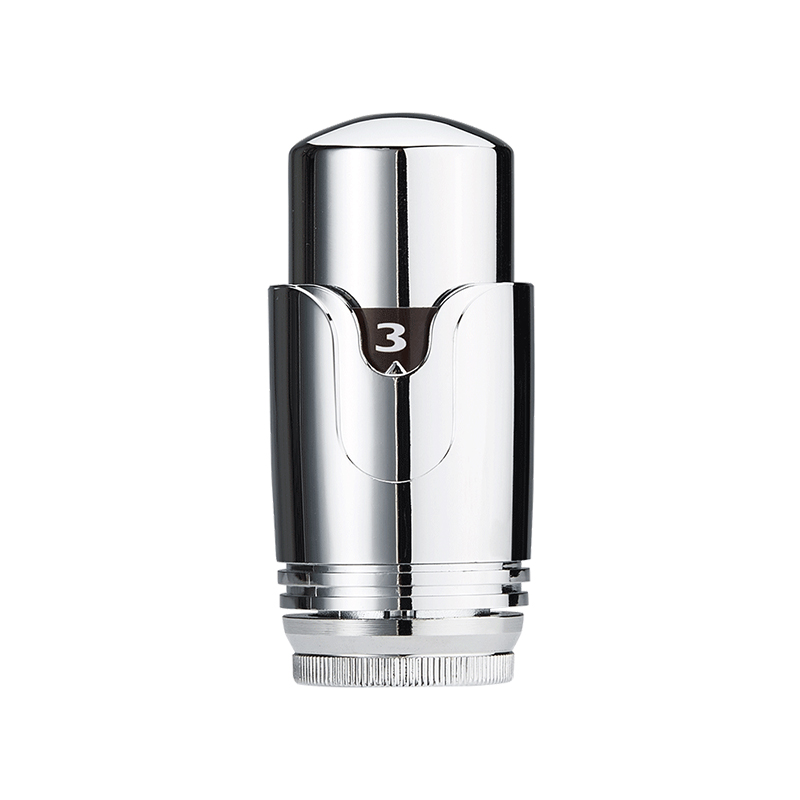

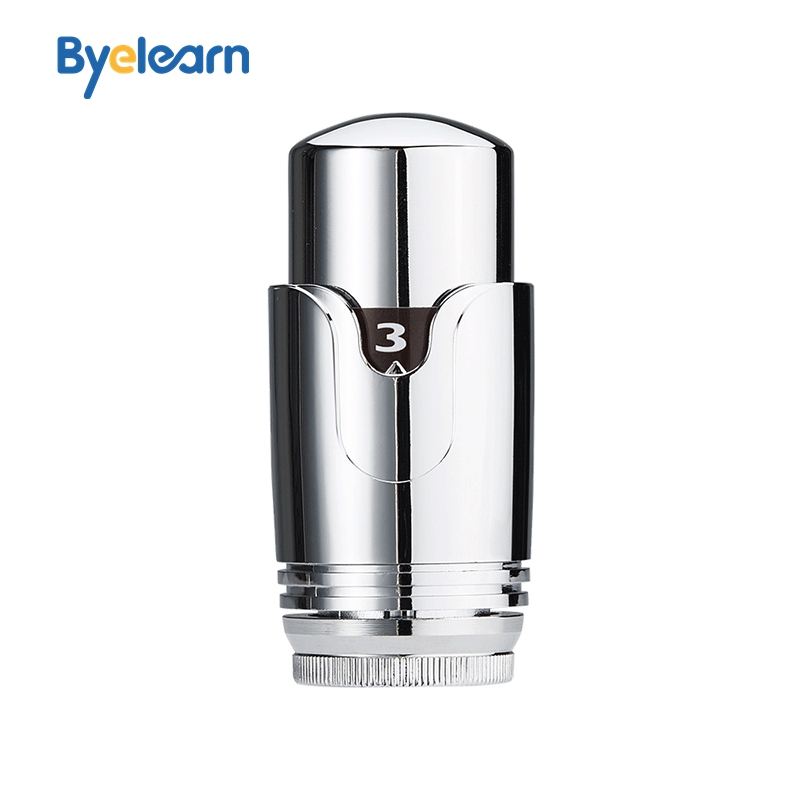

| Name: | Radiator thermostatic | |
| Model Number: | ||
| Warranty: | 1 year | |
| Maximum temperature: | ≤ 120°C | |
| Connection sleeve: | M30 x 1.5mm | |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 | |

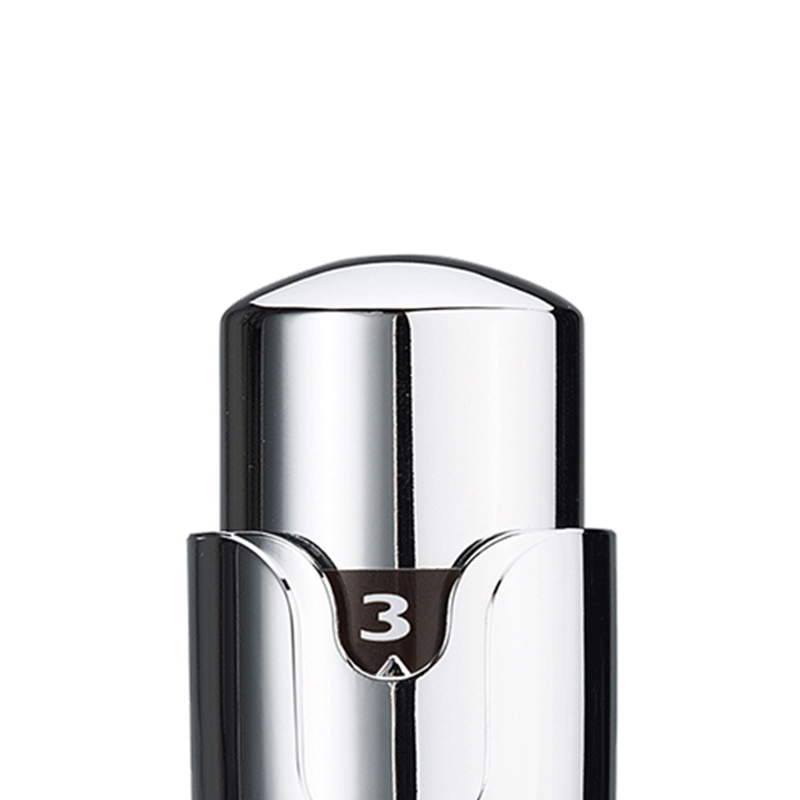

| Adjustment scale printed on the head: | 0,*,1,2,3,4,5 | |
| Stroke: | 5.6 mm | |
| Temperature range: | 6 ~ 28 °C | |
| Housing material: | ABS injection moulding | |
| Finish: | Chrome |

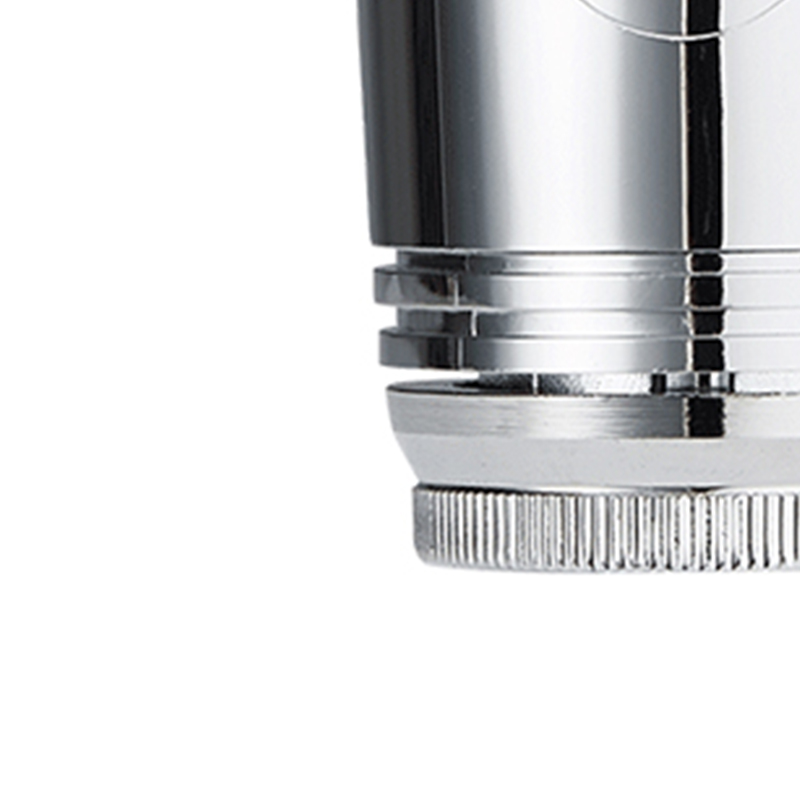

Chrome Plating Process Advantages: The valve head surface is treated with chrome plating, which not only enhances the product's aesthetic appeal but also significantly improves corrosion resistance and wear resistance, thereby extending its service life. The chrome plating layer effectively resists water stains, oxidation, and wear from daily use, keeping the valve head looking as good as new for years to come.
Mechanical Temperature Control Core: The water flow is manually adjusted via a knob or handle to control heat dissipation and regulate room temperature, eliminating the need for electrical power and ensuring energy efficiency and environmental friendliness. Its self-regulating mechanism (with a proportional band of 0.5-2.0°C) automatically compensates for fluctuations in room temperature, preventing energy waste.

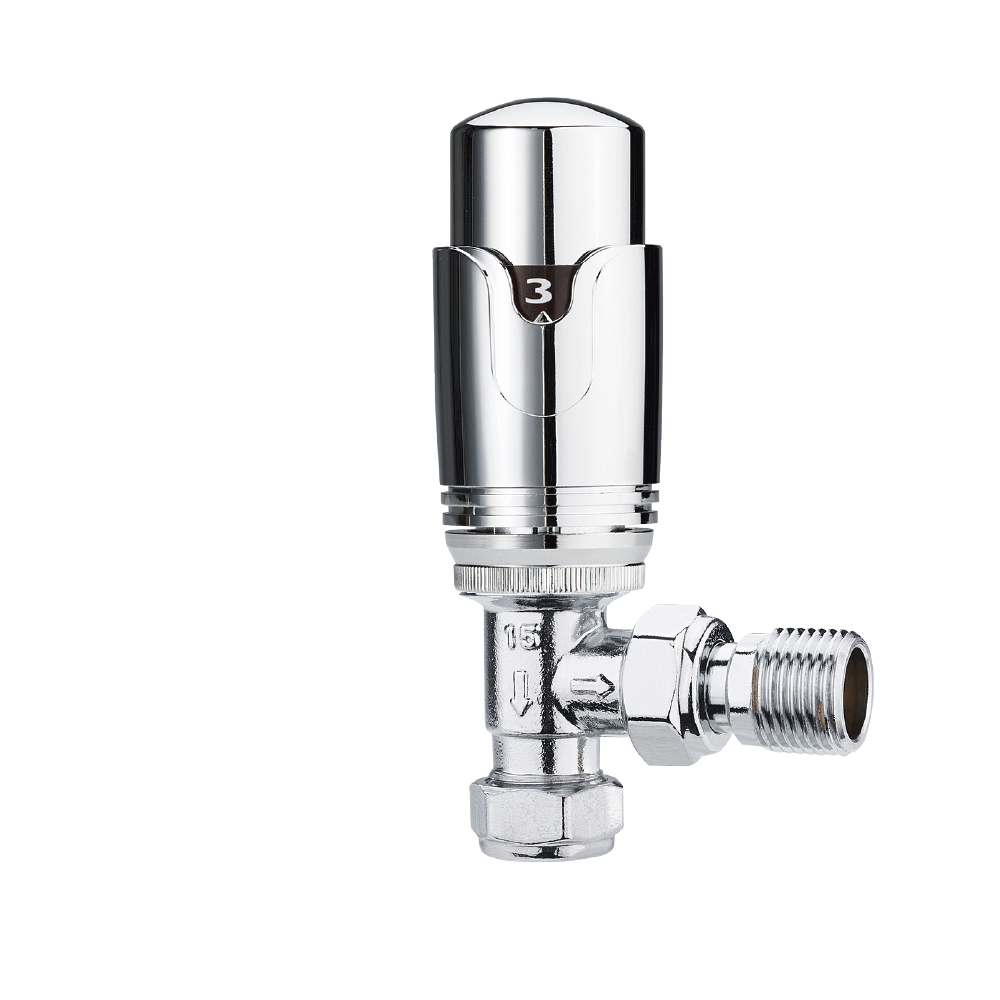

Structure and Materials: The valve body is typically made of nickel-plated brass or stainless steel, combined with chrome plating to further enhance durability and pressure resistance. Some products feature built-in temperature sensors (such as liquid or gas), which utilize the physical properties of temperature-sensitive media expanding or contracting when heated or cooled to drive the valve core and regulate water flow, achieving precise temperature control.

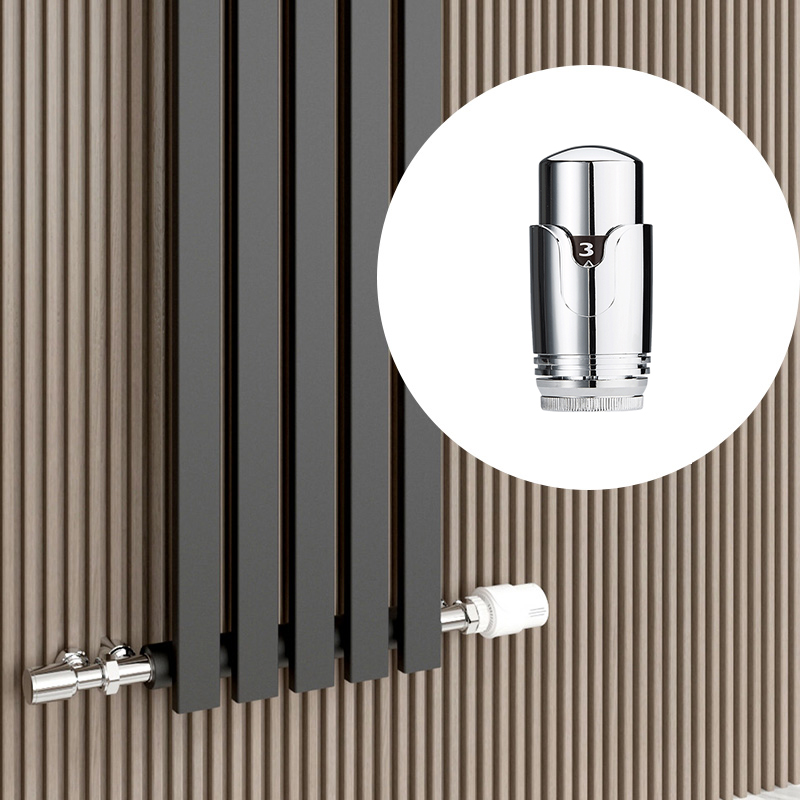

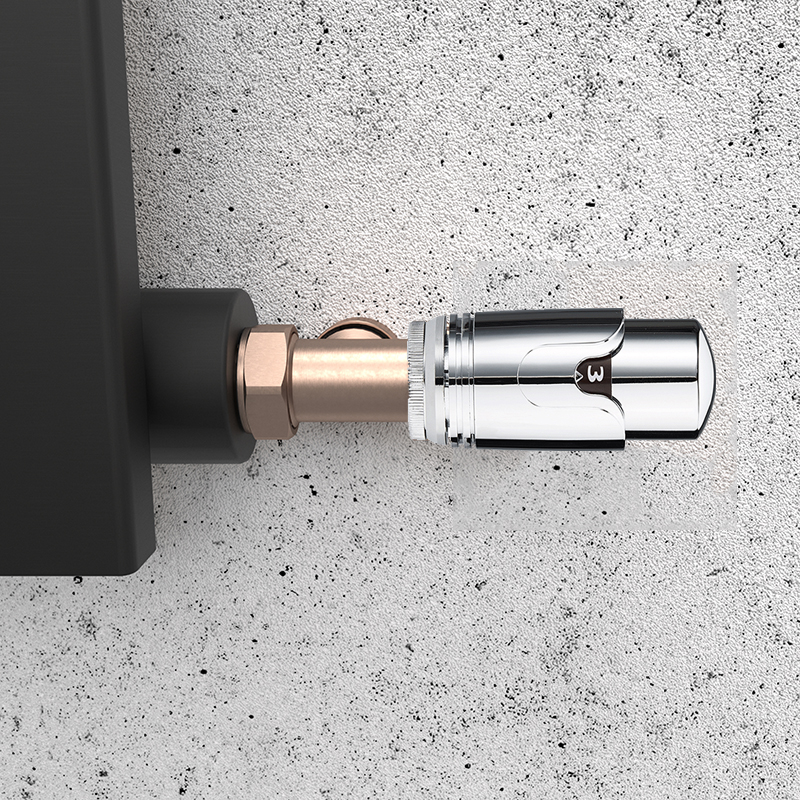

Wide range of applications: Suitable for residential heating systems (such as radiators, underfloor heating) and commercial buildings, industrial plants, and other heating systems, meeting large-area temperature control requirements.
