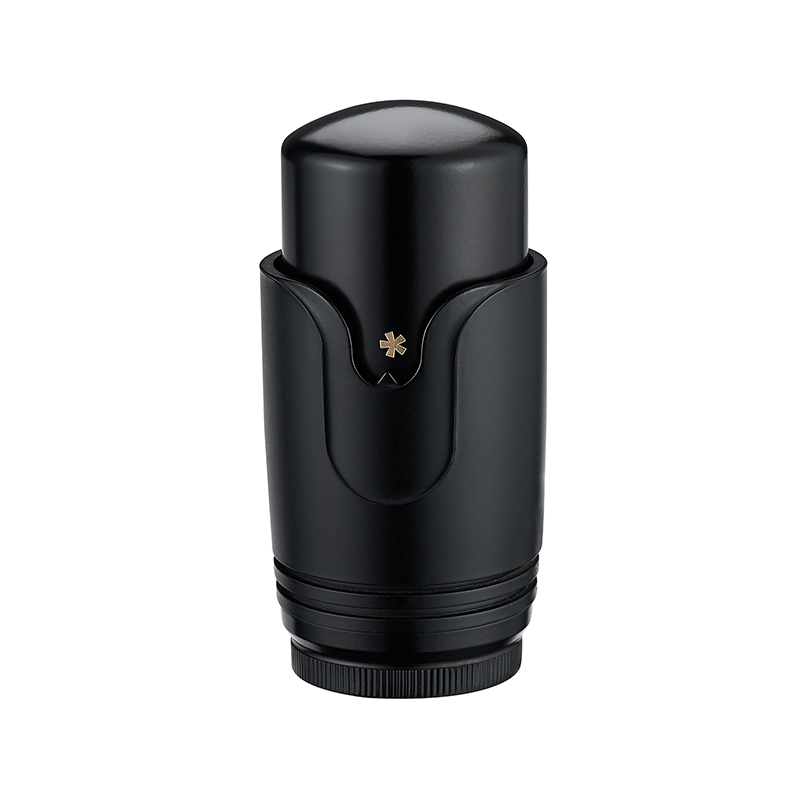

| Name: | Radiator thermostatic | |
| Model Number: | ||
| Warranty: | 1 year | |
| Maximum temperature: | ≤ 120°C | |
| Connection sleeve: | M30 x 1.5mm | |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 | |
| Adjustment scale printed on the head: | 0,*,1,2,3,4,5 | |
| Stroke: | 5.6 mm | |
| Temperature range: | 6 ~ 28 °C | |
| Housing material: | ABS injection moulding | |
| Finish: | Spray-painted glossy black |
Precise Mechanical Temperature Control: Built-in liquid or gas temperature sensor, which drives the valve core displacement through the thermal expansion and contraction of the temperature-sensitive medium, enabling manual temperature adjustment from 0 to 5 levels (within the range of 8-28°C). The self-regulating mechanism (proportional band: 0.5-2.0°C) automatically compensates for fluctuations in room temperature, achieving energy savings of 25%-36%.
Flexible Structure for Adaptability:
Temperature Sensor Configuration: The built-in sensor must be installed horizontally to ensure sensitivity, while the external sensor is connected via a capillary tube, addressing temperature control challenges in scenarios where radiators obstruct the sensor.
Valve Body Compatibility: Available in straight, angle, and three-dimensional designs, compatible with horizontal single-pipe, dual-pipe systems, and vertical piping configurations. High-resistance and low-resistance valve bodies are optional, optimizing hydraulic balance for different heating systems.
Durable and Safe Design: Copper valve body with nickel-plated corrosion resistance, built-in Y-type filter (50-micron filtration precision) to prevent debris blockage, with a lifespan exceeding 10 years. Low-temperature burn prevention function automatically stops water flow when hot water supply is interrupted, enhancing safety during use.
