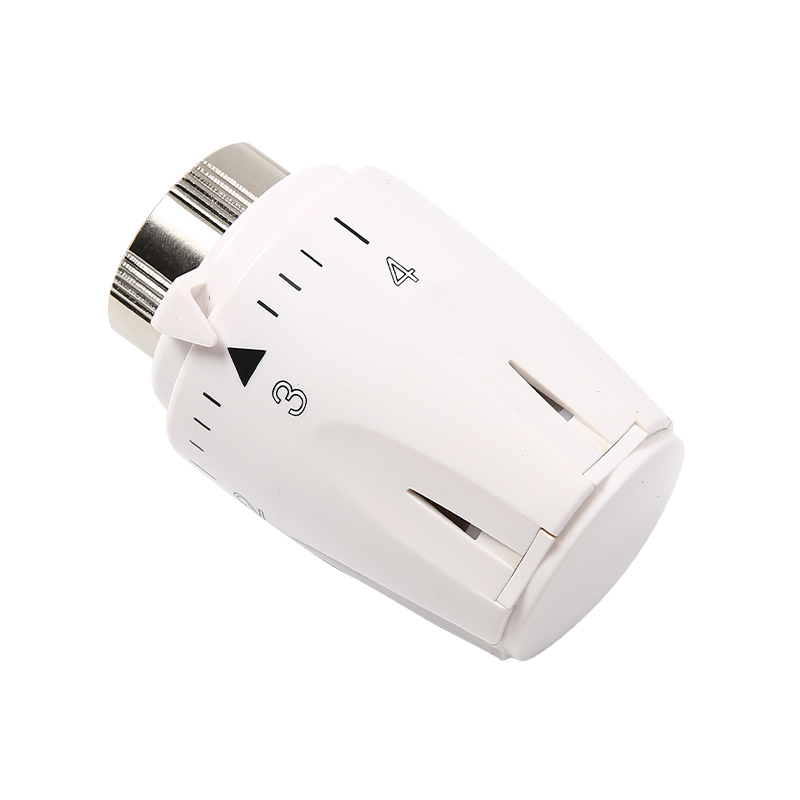

| Name: | Radiator thermostatic | |
| Model Number: |
| |
| Warranty: | 1 year | |
| Maximum temperature: | ≤ 120°C | |
| Connection sleeve: | M30 x 1.5mm | |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 | |

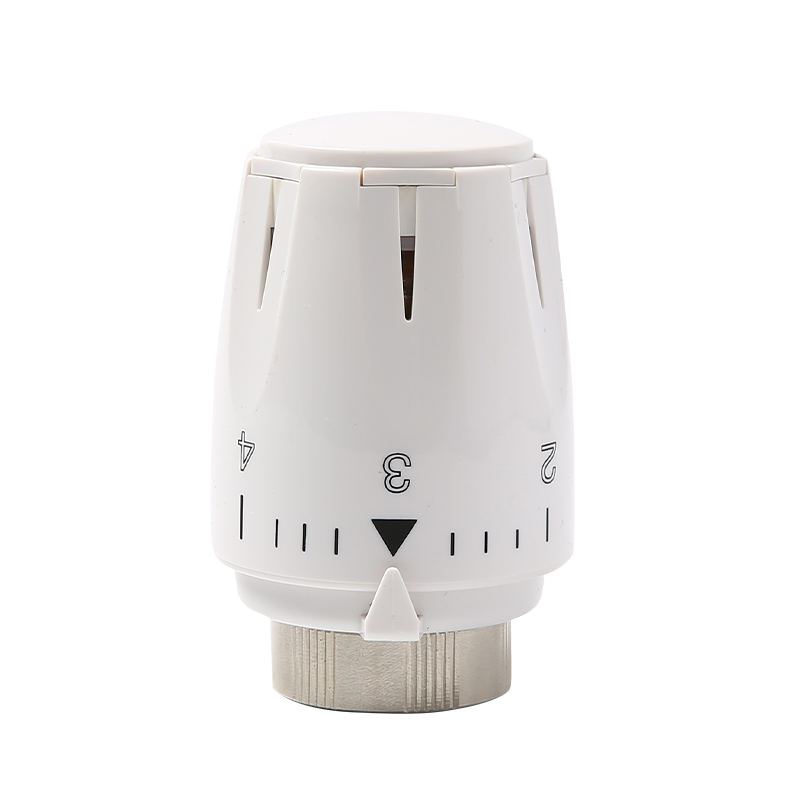

| Adjustment scale printed on the head: | 0,*,1,2,3,4,5 | |
| Stroke: | 5.6 mm | |
| Temperature range: | 6 ~ 28 °C | |
| Housing material: | ABS injection moulding | |
| Finish: | Injection molded white |
Material and Process:

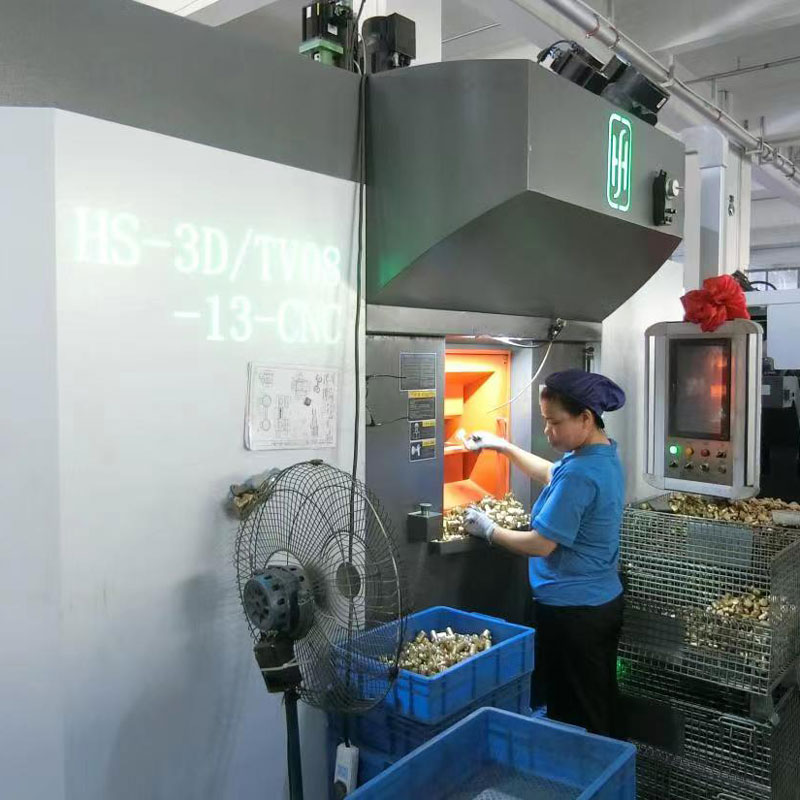

The valve body is forged in brass and has a nickel plating on the surface, effectively preventing oxidation and extending its service life.
Built-in stainless steel stem and spring ensure the stability and corrosion resistance of the mechanical structure.
Thermostatic control function:
Equipped with a thermal expansion temperature sensing element, it can accurately sense room temperature changes (such as electrical heat, solar radiation, etc.), automatically adjust the valve opening, and maintain a constant room temperature.
The temperature adjustment range is usually 6-28°C, and the user can manually set the target temperature with a knob, and some models support scale marking (e.g. "*" antifreeze mode, "0" off, "1-5" for 12-28°C).
Application Scenarios and Advantages:
It is widely used in residential, public buildings and industrial heating systems, especially suitable for double or single pipe hot water heating systems.
Through precise temperature control, energy waste can be reduced, and experiments have shown that energy can be saved by 10%-20%.
Strong compatibility, can match different pipe diameters (such as DN15, DN20) and installation methods (straight-through, angle, tee).
