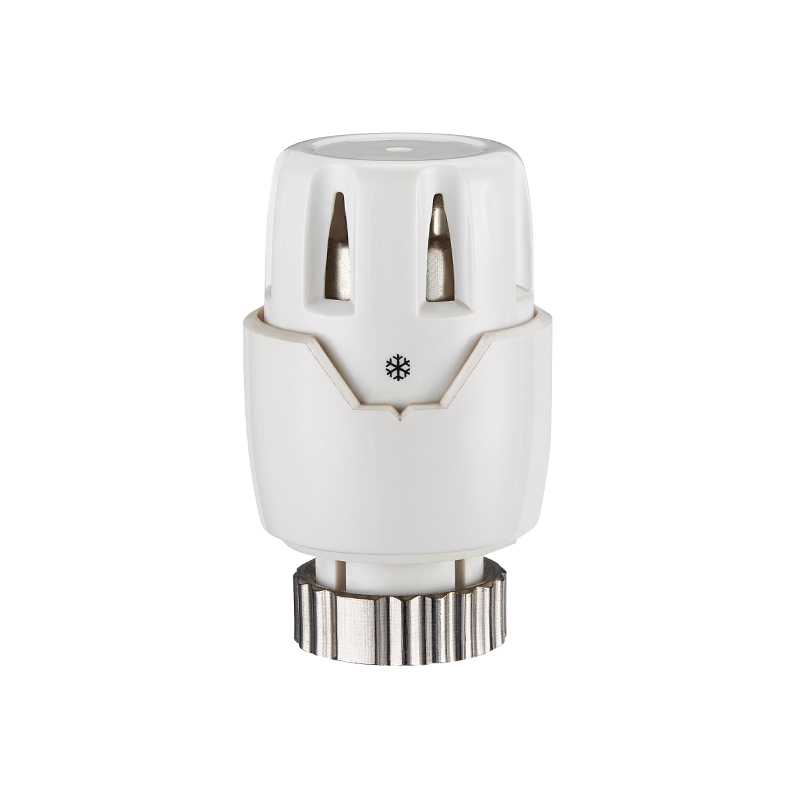

| Name: | Radiator thermostatic | |
| Model Number: | ||
| Warranty: | 1 year | |
| Maximum temperature: | ≤ 120°C | |
| Connection sleeve: | M30 x 1.5mm | |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 | |
| Adjustment scale printed on the head: | 0,*,1,2,3,4,5 | |
| Stroke: | 5.6 mm | |
| Temperature range: | 6 ~ 28 °C | |
| Housing material: | ABS injection moulding | |
| Finish: | Injection molded white |
Precise Mechanical Temperature Control
Built-in stainless steel bellows temperature sensing element, response speed 40% faster than ordinary wax type, temperature adjustment range 5-45℃, every 15° rotation of the knob corresponds to 1℃ temperature change, positioning accuracy of ±0.8℃.
Strong adaptability
-30℃~120℃ wide temperature range, pressure resistance 16Bar, through the salt spray and thermal shock test, suitable for all kinds of heating systems.
Economy and energy saving
Pure mechanical structure with zero power consumption, procurement cost is 50% lower than electronic temperature control, reasonable use can save 15%-25%.
Convenient design
Standard M30×1.5 interface is ready to use
Built-in antifreeze protection, low temperature automatic opening
