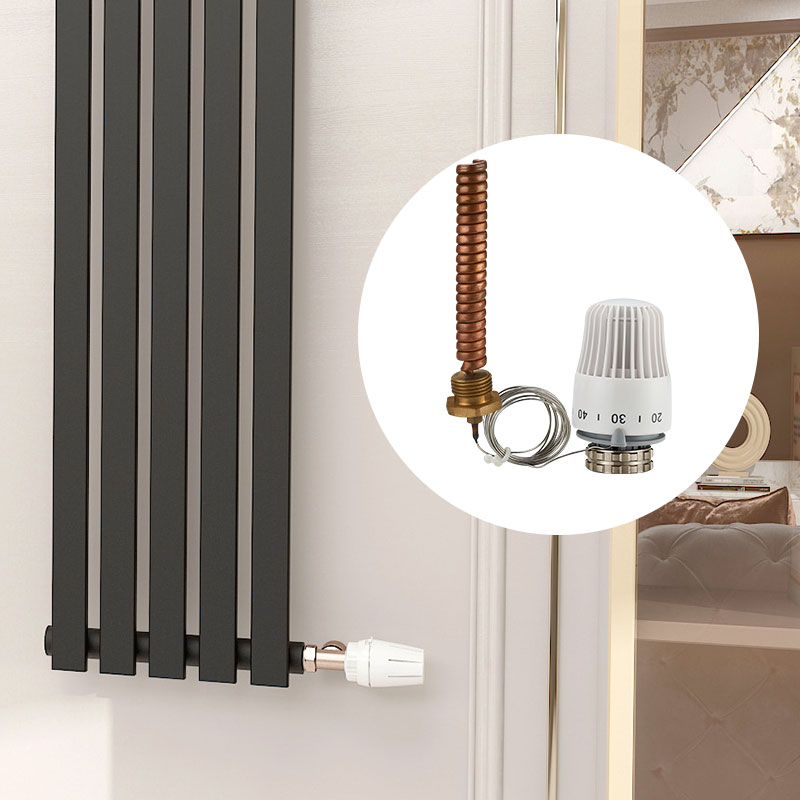

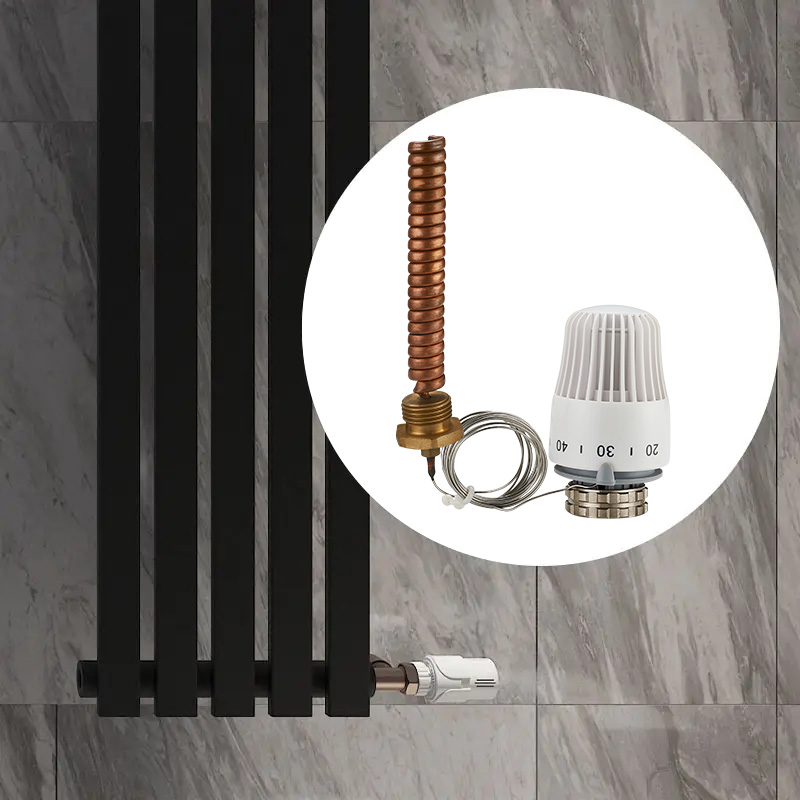

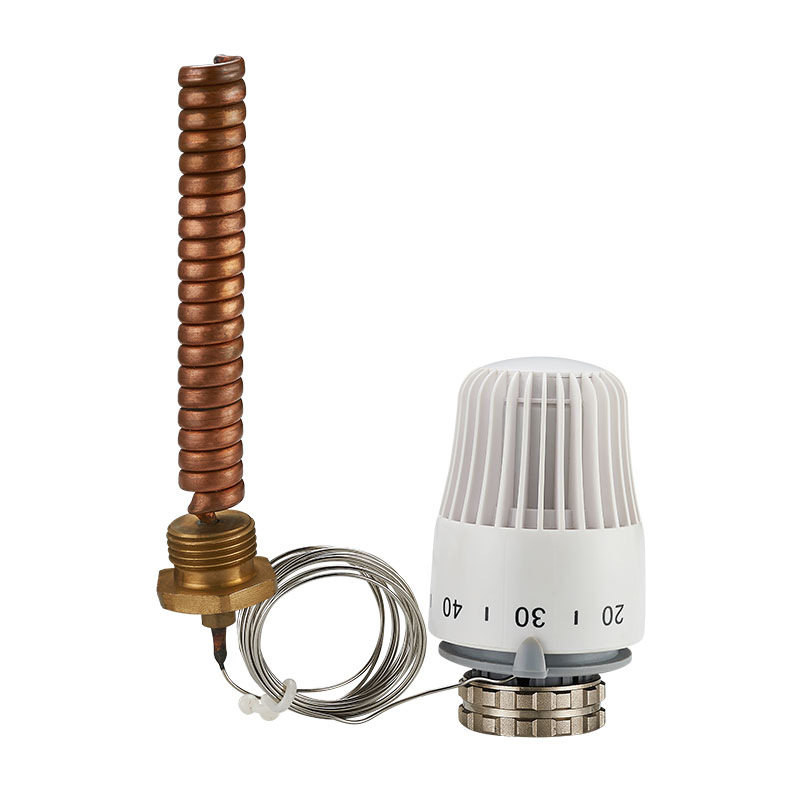

| Name: | Radiator thermostatic with remote sensor |
| Model Number: | BYL-012 |
| Maximum temperature: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Stroke: | 5.6 mm |
| Housing material: | ABS injection moulding |
| Pipe Length: | 2m |
| Control Range: | 6°C-28°C,30°C-70°C,10°C-60°C,20°C-60°C |
The temperature of the radiator can be adjusted by means of a remote temperature sensor.
How it works:
Conventional mechanical TRVs: Relying on built-in wax/liquid temperature sensing elements to directly detect the temperature near the valve to regulate water flow.
Wired remote sensors: Provide more accurate room temperature data with external temperature probes (e.g., installed in the center of the room).
Wired remote sensor TRV
The temperature control head is connected by cable to the independent temperature sensor (can be mounted away from the radiator).
Advantages: Temperature detection is more accurate, not affected by the local high temperature of the radiator.
