| Name: | Thermostatic radiator valve |
| Model Number: | L3002TA211NZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |

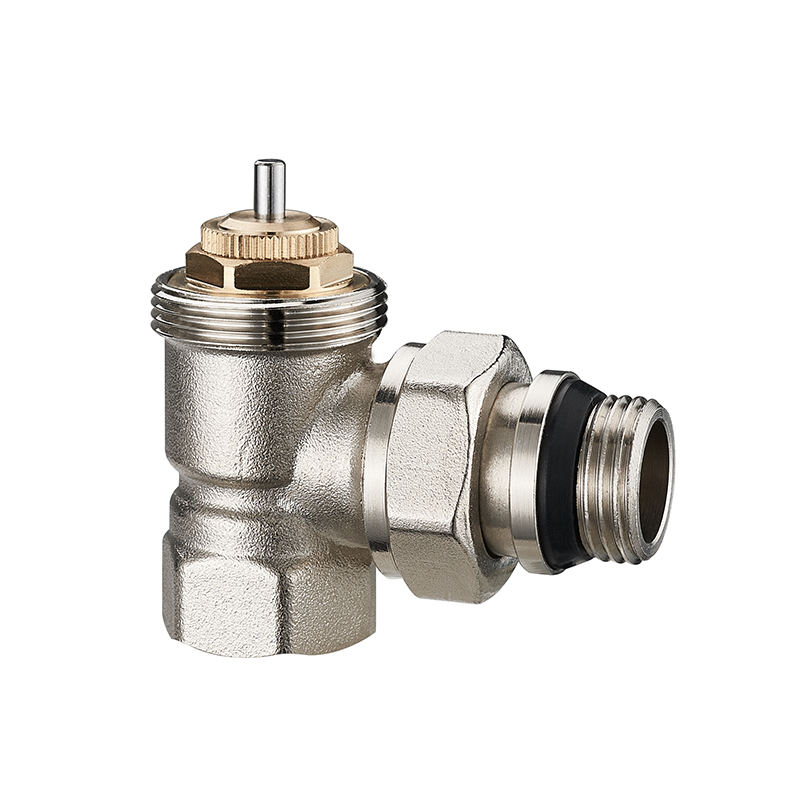

DN15 angle brass self-sealing TRV (thermostatic control valve) is an intelligent temperature control valve for heating systems, forged with high quality brass for corrosion resistance, suitable for domestic and commercial HVAC systems. Its DN15 caliber (1/2 inch) is designed to fit common piping, and its angled structure saves space, making it easy to install on the inlet and outlet of the heater.
Core features:
Self-sealing function: The valve has a built-in self-sealing device, which automatically blocks water flow during disassembly or maintenance, eliminating the need to shut down the system main valve and minimizing the impact of heating outages.
Accurate temperature control: built-in temperature packet senses the ambient temperature, automatically adjusts the flow rate to maintain the set room temperature (usually 5-28 ℃ adjustable), energy saving 10%-20%.
Brass valve body: high-strength material resistant to high pressure (≤ 1.6MPa) and high temperature (≤ 120 ℃), long-term use of anti-rust and anti-leakage.
Bidirectional installation: support horizontal or vertical pipeline installation, adapt to a variety of system layout.
