| Name: | Thermostatic radiator valve |
| Model Number: | L3001TE001HZZ |
| Temperature resistance: | ≤ 120°C |
| Connection sleeve: | M30 x 1.5mm |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 |
| Material: | Brass |
| Rated working pressure: | ≤ 1Mpa |
| Water pressure: | 10 bar |
| Available: | G thread or R thread |
| Size: | G1/2 |

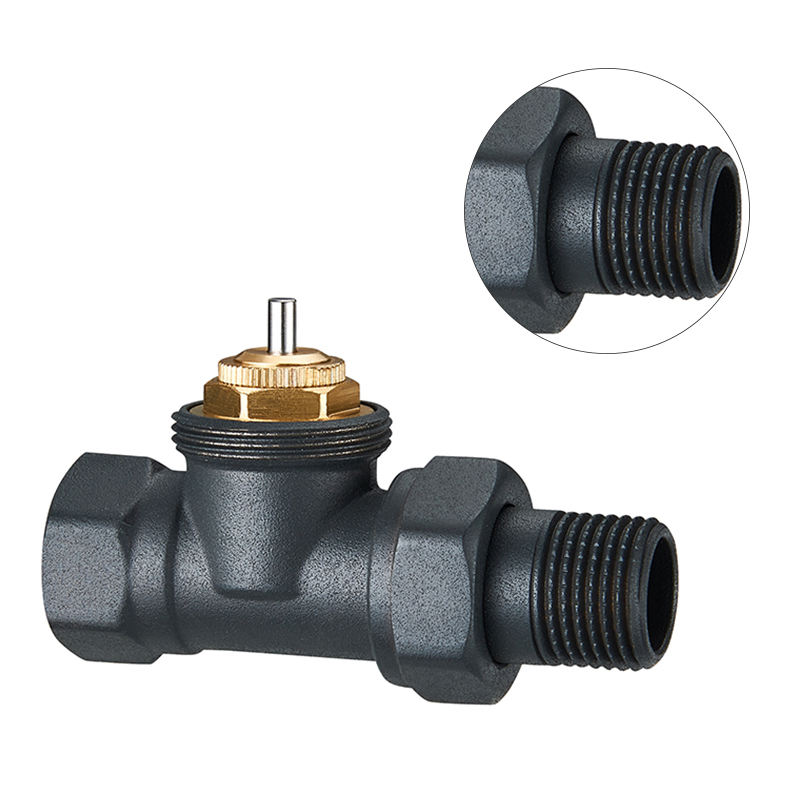

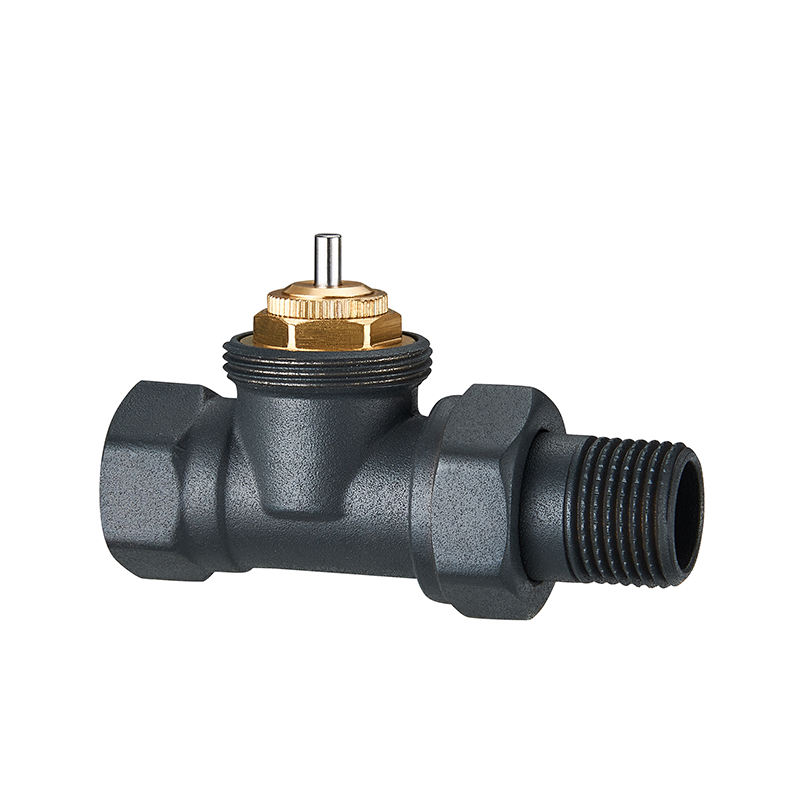

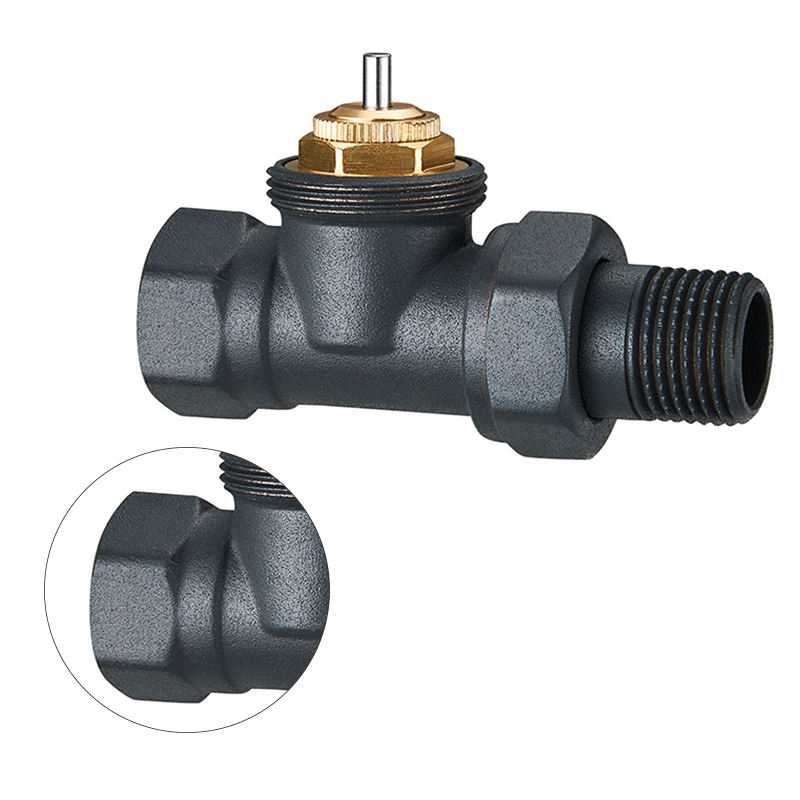

The valve adopts straight design, compact structure and easy installation, especially suitable for places with limited space.

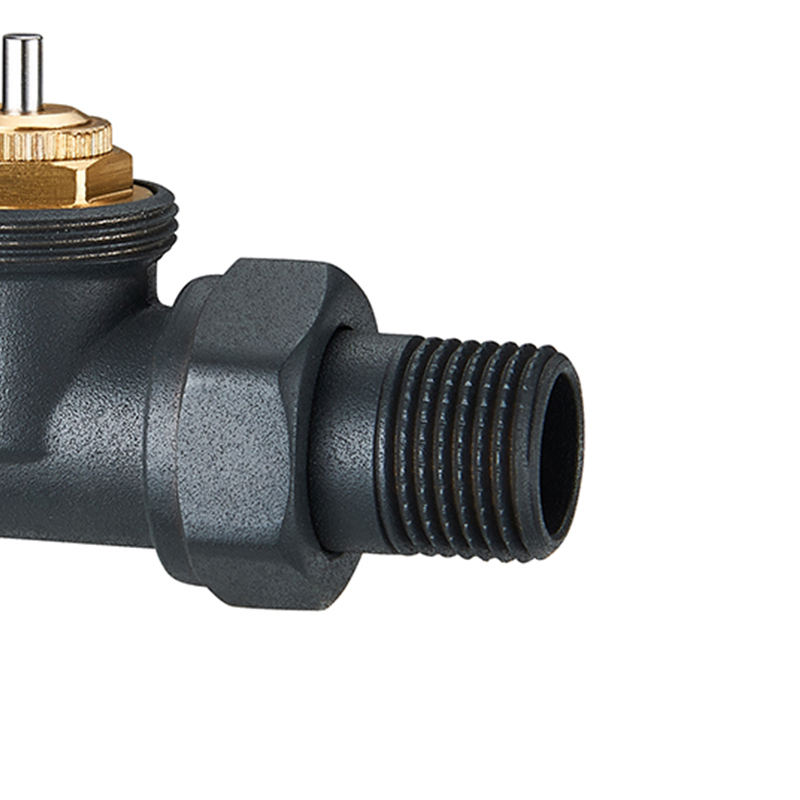

Its M30*1.5mm standard connector ensures a solid connection with the radiator. The surface of the valve is painted in black, which is not only beautiful and generous, but also effective in preventing corrosion and prolonging the service life.
The valve has a built-in thermostatic controller, which can automatically adjust the water flow size according to the room temperature, keeping the room temperature constant and improving the comfort and energy saving of heating. When the room temperature rises, the temperature-sensitive element expands and pushes the valve stem to make the valve close; when the room temperature falls, the temperature-sensitive element contracts and the valve stem springs back to make the valve open, thus realizing a constant room temperature.
In addition, the valve is easy to operate, the user can easily set the desired room temperature through the knob, DN15 size makes it suitable for small heating systems, is to improve the quality of heating and energy saving effect of the ideal choice.
