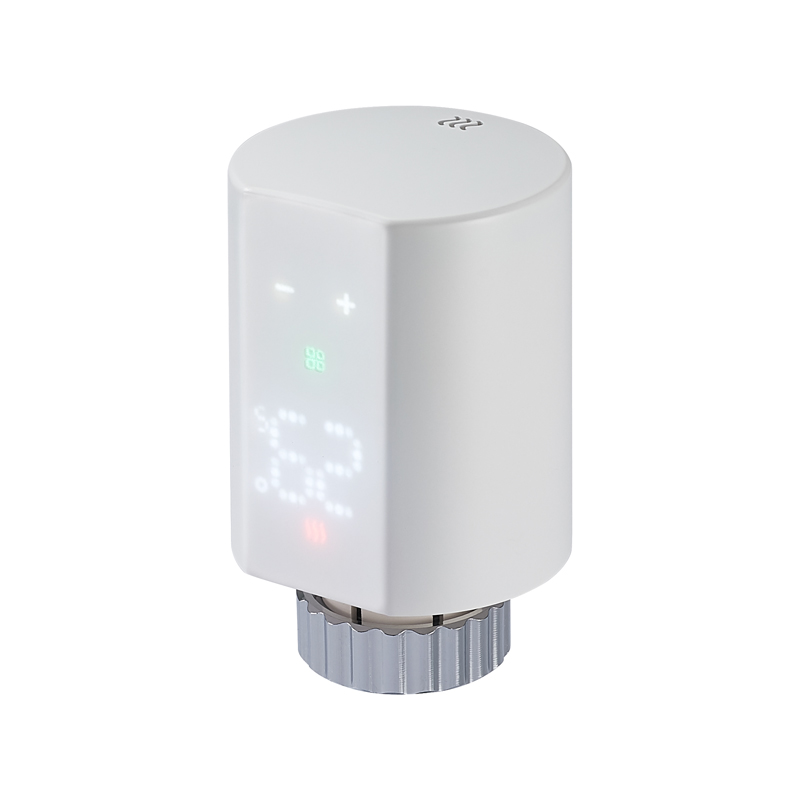

Product name: Smart radiator thermostat
Model: TRV200
Warranty: 1 year
Power supply method: 2 alkaline batteries, size 5
Input current: 200 mA(max)
Protection class: IP20
Ambient temperature: 0~50°C

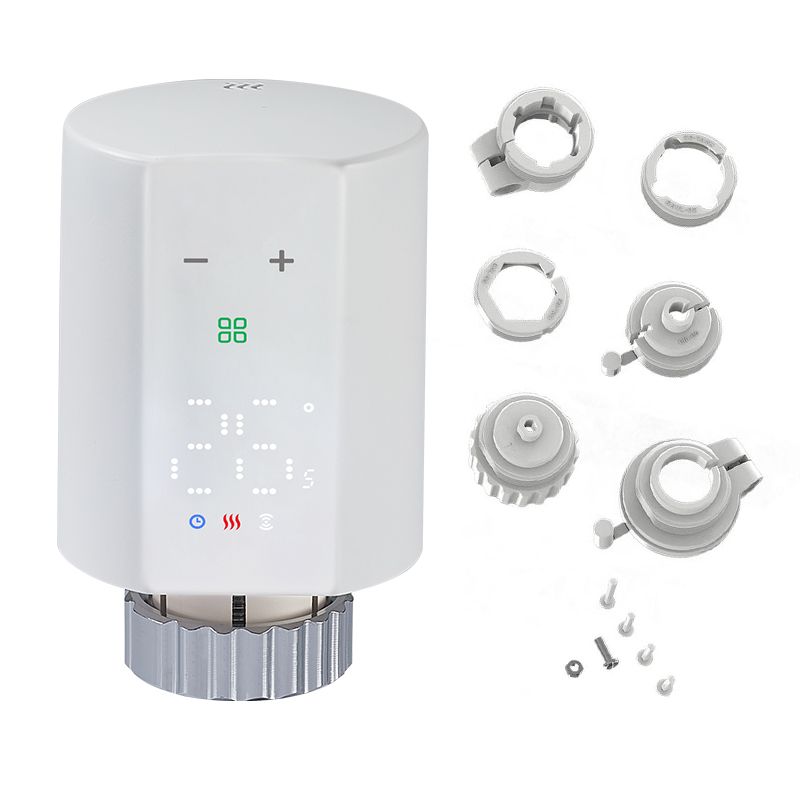

Interface: M30 x 1.5 mm
Stroke: 5 mm
How it works
The Smart TRV adds to the traditional thermostat head:
Motor drive: automatically rotates the spool to regulate water flow (replaces the manual knob).

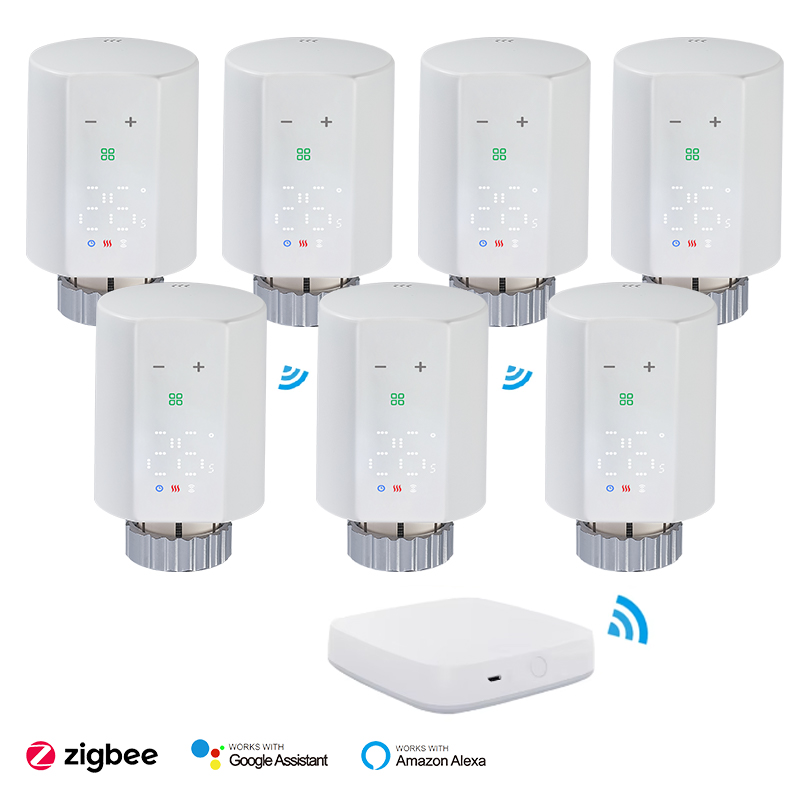

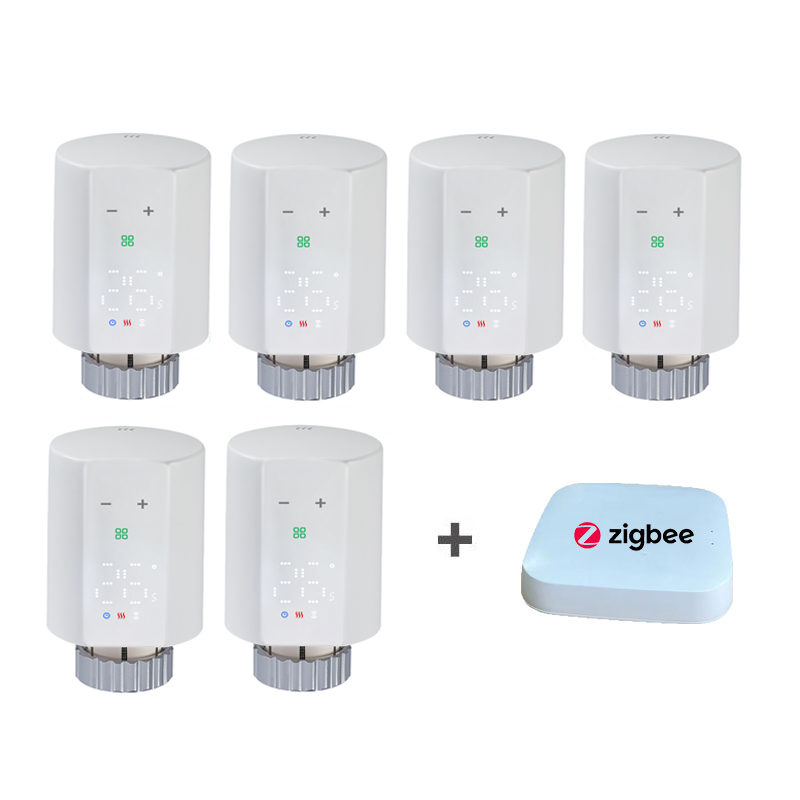

Wireless communication: Bluetooth, Wi-Fi, Zigbee or Z-Wave to connect to the smart home system.
Temperature sensor: real-time monitoring of the ambient temperature to dynamically adjust the valve opening.
Smart radiator thermostat head is a practical device to improve heating efficiency and reduce energy consumption, especially suitable for multi-room independent temperature control or smart home users. If the budget is sufficient, it is recommended to choose a low-power model with Zigbee/Thread protocol, and match it with a central temperature control system (e.g., mixed underfloor heating + radiator control) to realize whole-house smart heating.
