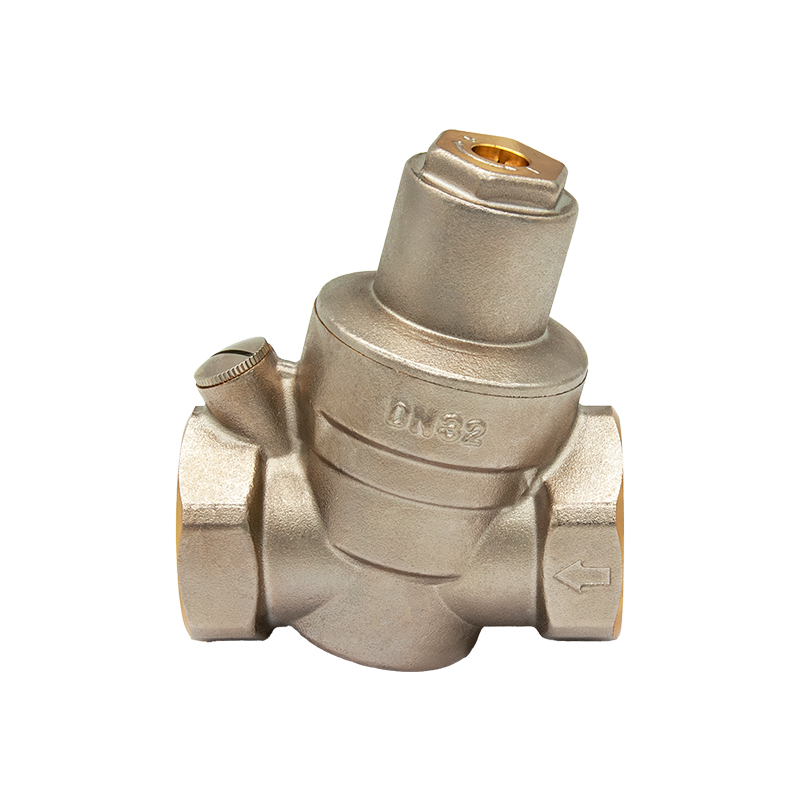

Brass DN32 water pressure reducing valve
| Name: | Pressure reducing valve |
| Model: | L3013TE018NZZ |
| Size: | DN32 |
| Medium Temprerature: | 0℃-90℃ |
| Power: | Manual |
| Media: | Water |
| Structure: | Pressure Reducing |
| Flow direction: | Single |
| Body material: | Brass |
| Name: | Pressure reducing valve |
| Model: | L3013TE018NZZ |
| Size: | DN32 |
| Medium Temprerature: | 0℃-90℃ |
| Power: | Manual |
| Media: | Water |
| Structure: | Pressure Reducing |
| Flow direction: | Single |
| Body material: | Brass |
Core Applications and Functions
Reducing Excessive Water Pressure:
Lowers fluctuating and often excessive water pressure supplied by municipal networks or high-rise building water tanks (e.g., above 0.6 MPa) to a safe, reasonable pressure level suitable for end-use appliances (e.g., 0.2–0.3 MPa).
Stabilising Pressure Fluctuations:
Even when upstream inlet pressure varies, the pressure reducing valve automatically maintains downstream outlet pressure within a preset, stable range through its internal sensing and regulating mechanisms (such as diaphragms, springs, or pistons), preventing sudden surges or drops.
