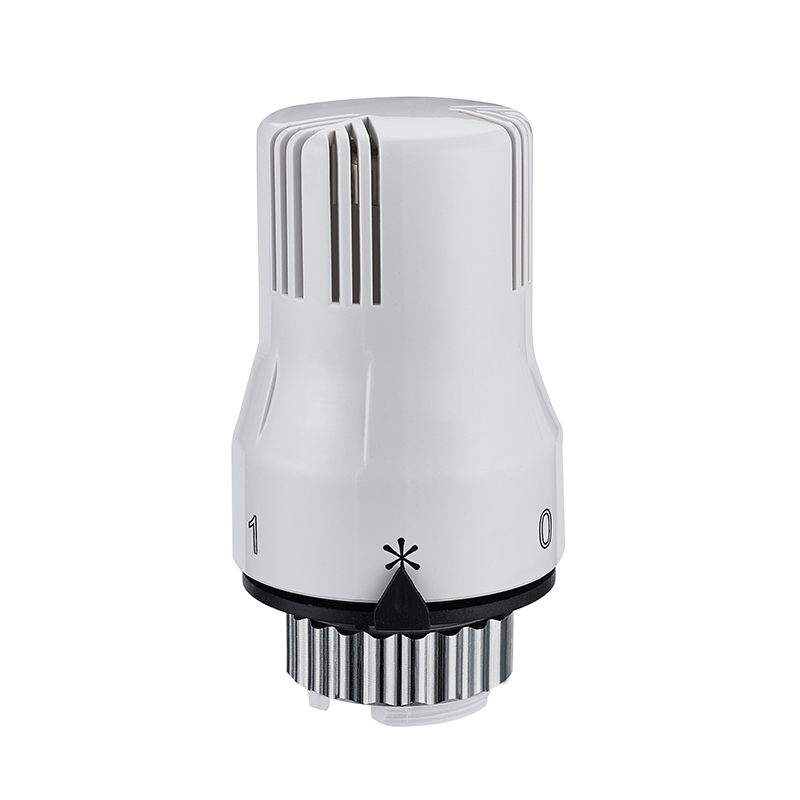

| Name: | Radiator thermostatic | |
| Model Number: | ||
| Warranty: | 1 year | |
| Maximum temperature: | ≤ 120°C | |
| Connection sleeve: | RA | |
| Approvals: | CE,EN215(Keymark),ISO9001,ISO14001 | |

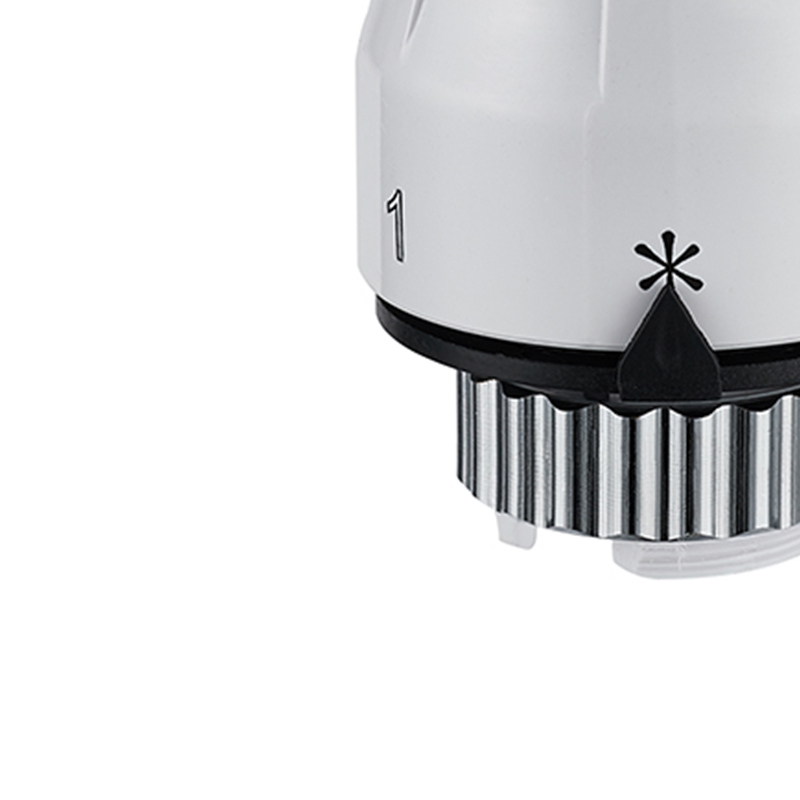

| Adjustment scale printed on the head: | 0,*,1,2,3,4,5 | |
| Stroke: | 5.6 mm | |
| Temperature range: | 6 ~ 28 °C | |
| Housing material: | ABS injection moulding | |
| Finish: | Injection molded white |
The radiator thermostat works on the principle that the temperature pack senses changes in the ambient temperature. After sensing the temperature change, the temperature packet will produce a volume change and drive the spool of the regulating valve to produce displacement, thus regulating the amount of water in the radiator. This self-acting action does not require external power, through the temperature packet senses the ambient temperature, automatically regulates the flow of hot water through the radiator to achieve thermostatic control.
